Skywell Magic 3D Plus1 (8 MB mod)
Published: (last update )
Note: Modded to 8 MB. TMU and FBI have 4 MB each. 800×600 resolution is possible, but too slow to be useful.
| GPU | |
|---|---|
| GPU type | SST1 |
| Manufacturing process | 500 nm |
| Transistors | 1 million |
| Die size | 135 mm2 |
| Density | 0.007 M / mm2 |
| ROPs | 1 |
| TMUs | 1 |
| Pixel shaders | - |
| Vertex shaders | - |
| Unified shaders | - |
| Clock | 50 MHz |
| Pixel fillrate | 50 MP/s |
| Texel fillrate | 50 MT/s |
| SP gigaflops | - |
| DP gigaflops | - |
| DirectX | 5 |
| OpenGL | 1.1 |
| OpenCL / Compute ver. | - |
| Memory | |
|---|---|
| Capacity | 8 MB |
| Type | EDO |
| Clock | 50 MHz |
| Bus width | 128 bit |
| Bandwith | 800 MB/s |
| Rated speed | 100 MHz |
| Brand | TM + EliteMT |
| The card | |
| Manufacturer | Skywell |
| Interface | PCI |
| Interface bandwith | 133 MB/s |
| TDP | - |
| Analog I/O ports | 1 × VGA |
| Digital I/O ports | - |
| Independent screens | 1 |
| Manufacture date | 39th week of 1998 |
| Release date | 1996 |

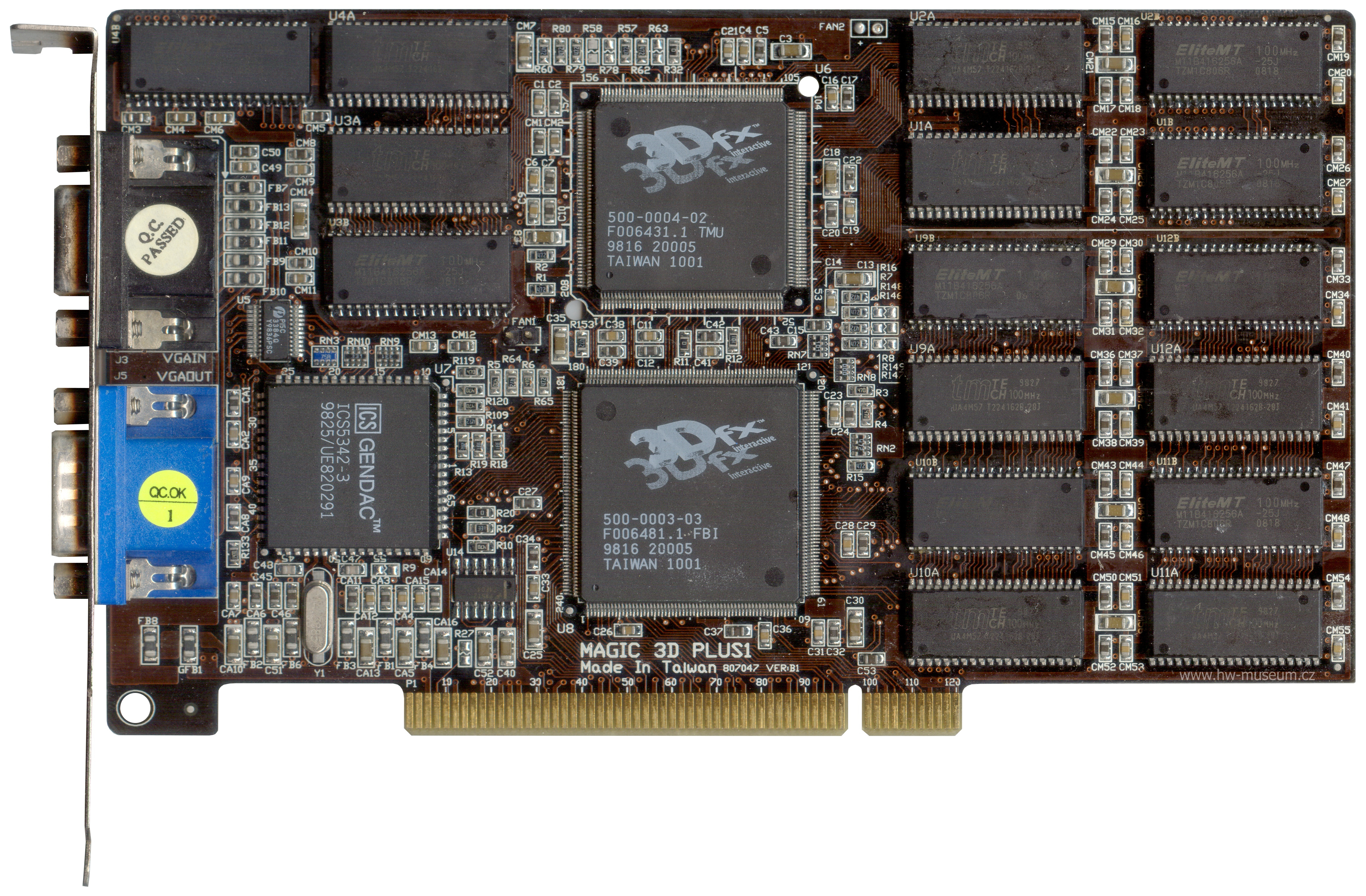

_F.jpg "Click to enlarge")

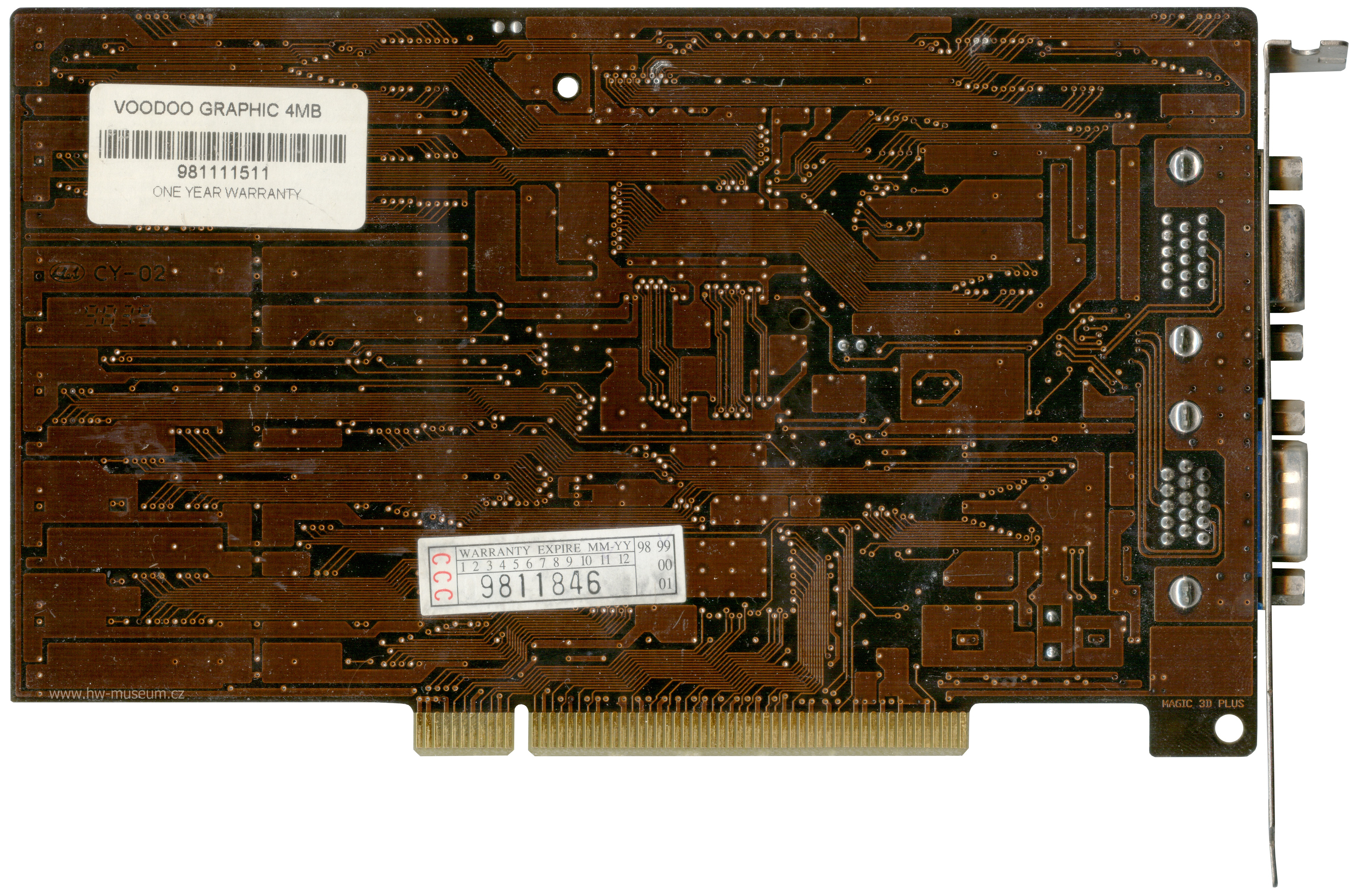

_B.jpg "Click to enlarge")

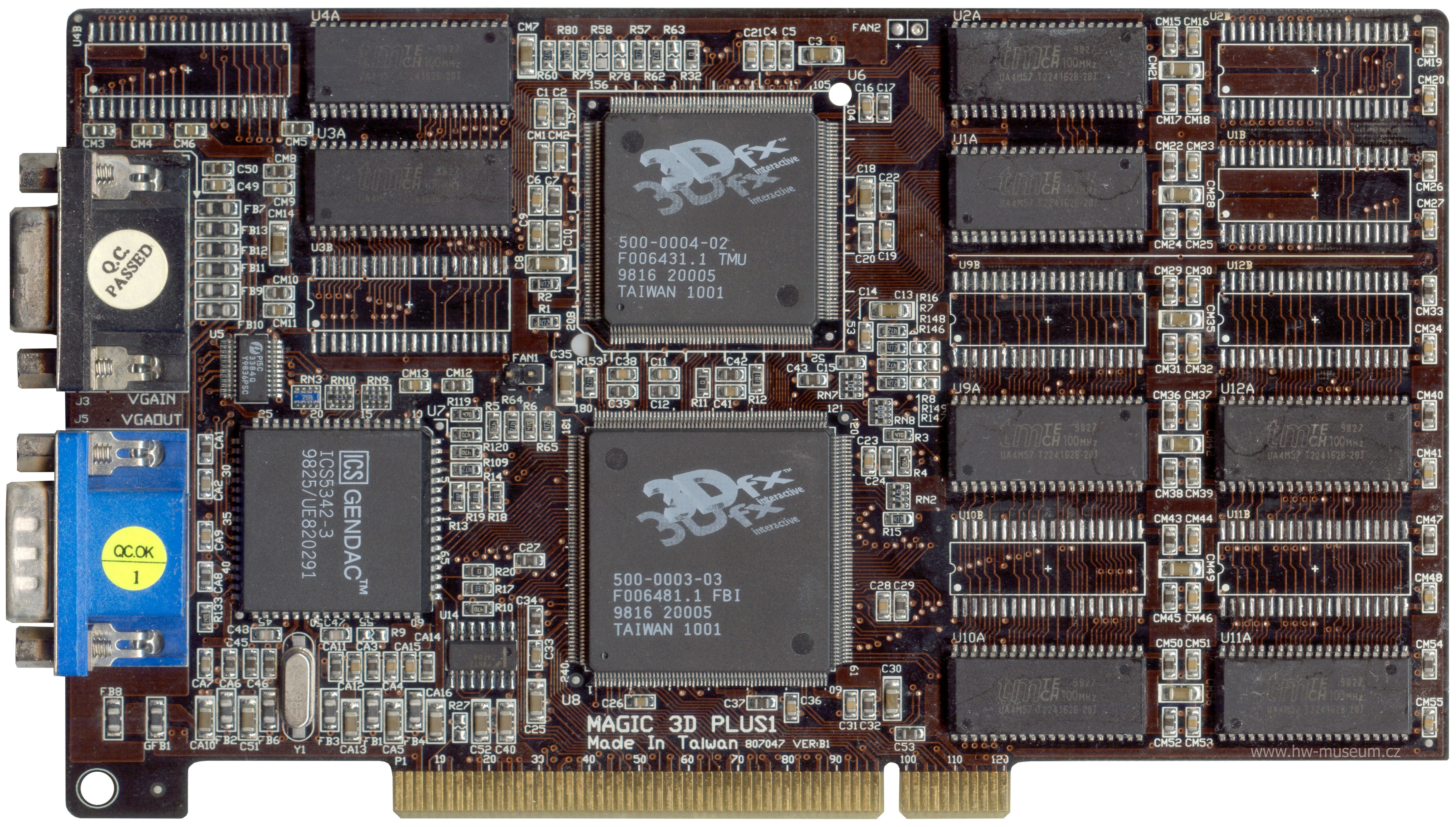

_1.jpg "Click to enlarge")
