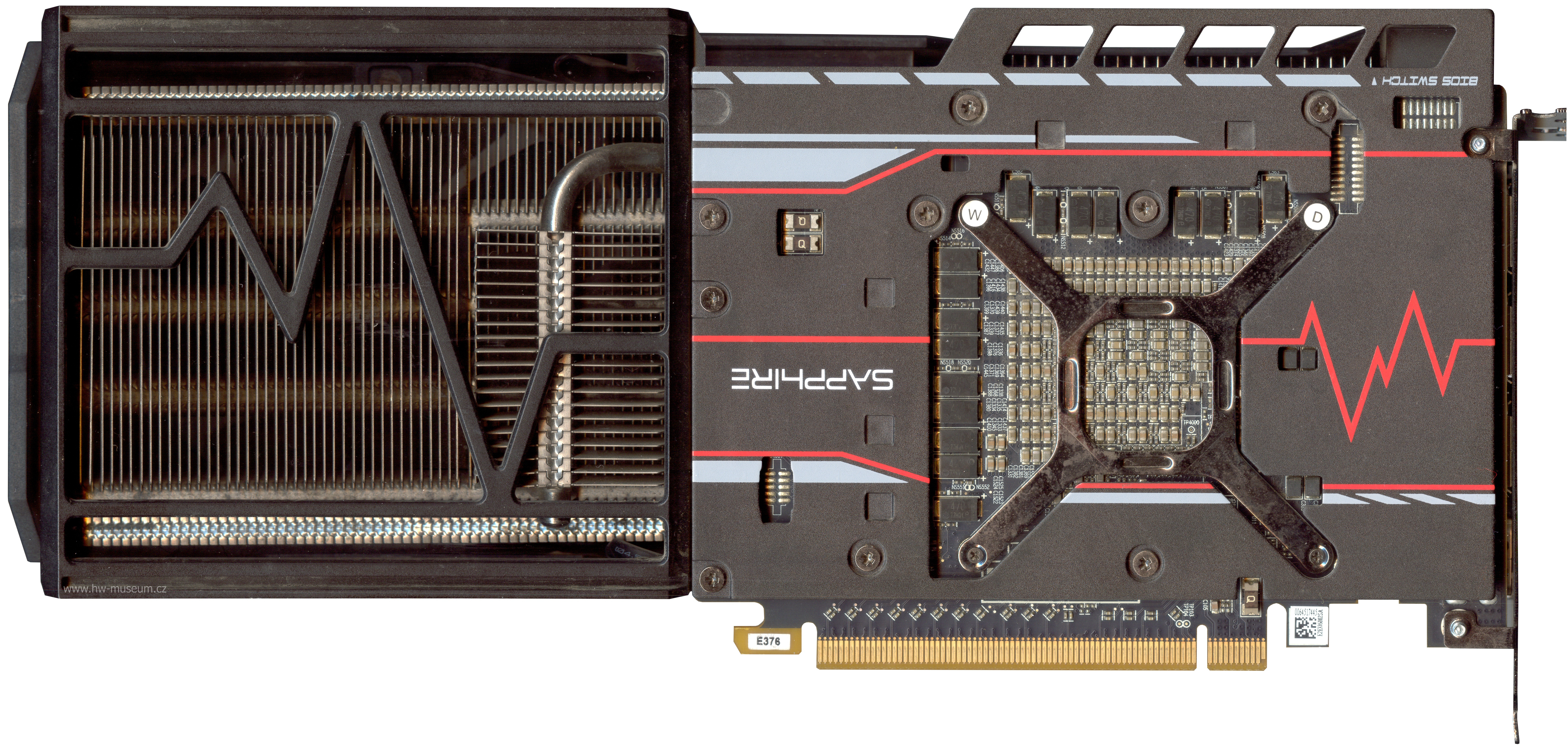

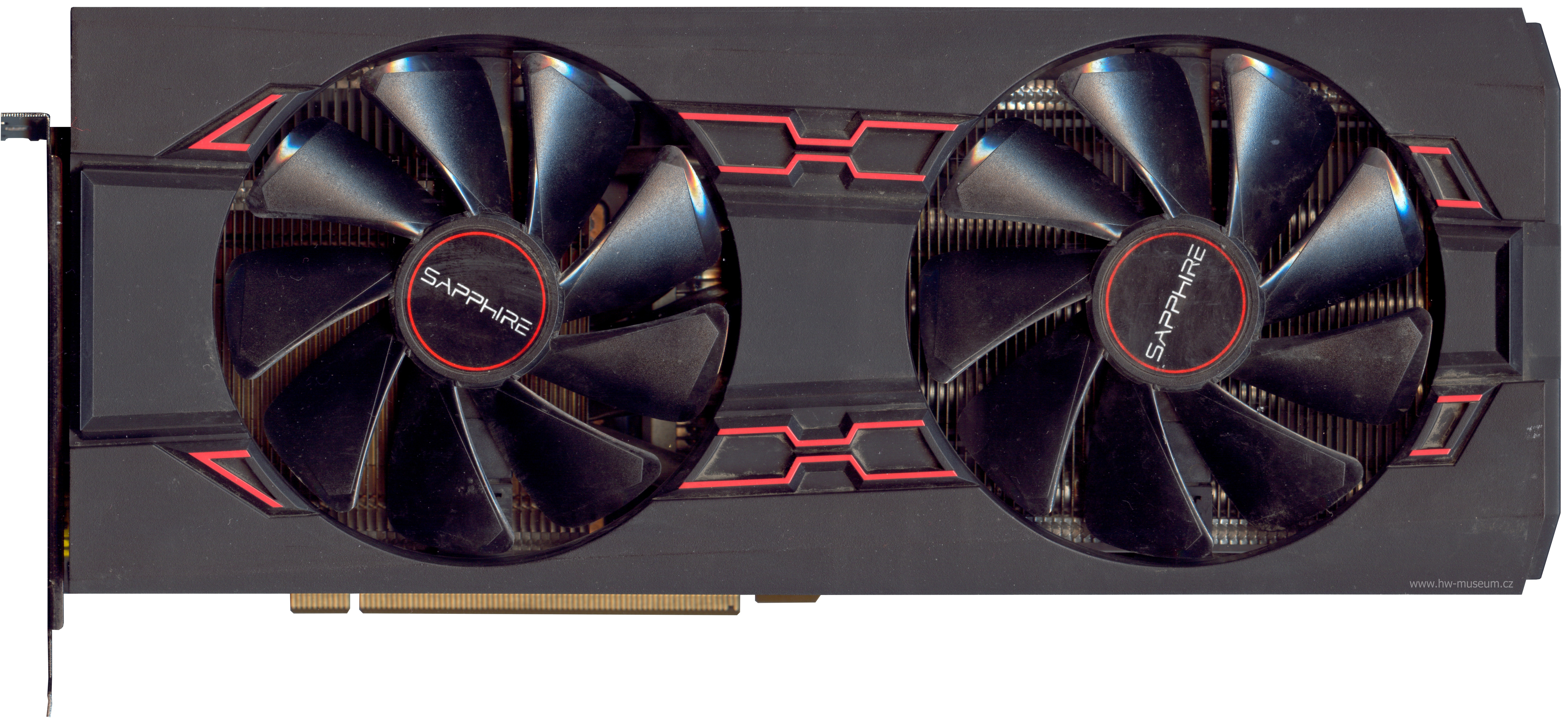

Sapphire Radeon RX Vega 56
Published: (last update )
| GPU | |
|---|---|
| GPU type | Vega 10 |
| Manufacturing process | 14 nm |
| Transistors | 12 500 million |
| Die size | 486 mm2 |
| Density | 25.7 M / mm2 |
| ROPs | 64 |
| TMUs | 224 |
| Pixel shaders | - |
| Vertex shaders | - |
| Unified shaders | 3 584 |
| Clock | 1 512 MHz |
| Pixel fillrate | 96 768 MP/s |
| Texel fillrate | 338 688 MT/s |
| SP gigaflops | 10 840 |
| DP gigaflops | 677 |
| DirectX | 12 |
| OpenGL | 4.6 |
| OpenCL / Compute ver. | 2.1 / - |
| Memory | |
|---|---|
| Capacity | 8 192 MB |
| Type | HBM |
| Clock | 1 600 MHz |
| Bus width | 2048 bit |
| Bandwith | 409 600 MB/s |
| Rated speed | - |
| Brand | - |
| The card | |
| Manufacturer | Sapphire |
| Interface | PCI-E 3.0 x16 |
| Interface bandwith | 16 384 MB/s |
| TDP | 210 W |
| Analog I/O ports | - |
| Digital I/O ports | 3 × DP, 1 × HDMI |
| Independent screens | 4 |
| Manufacture date | - |
| Release date | 2017 |
