ZXC64 Stoned Shaman
Published: (last update )

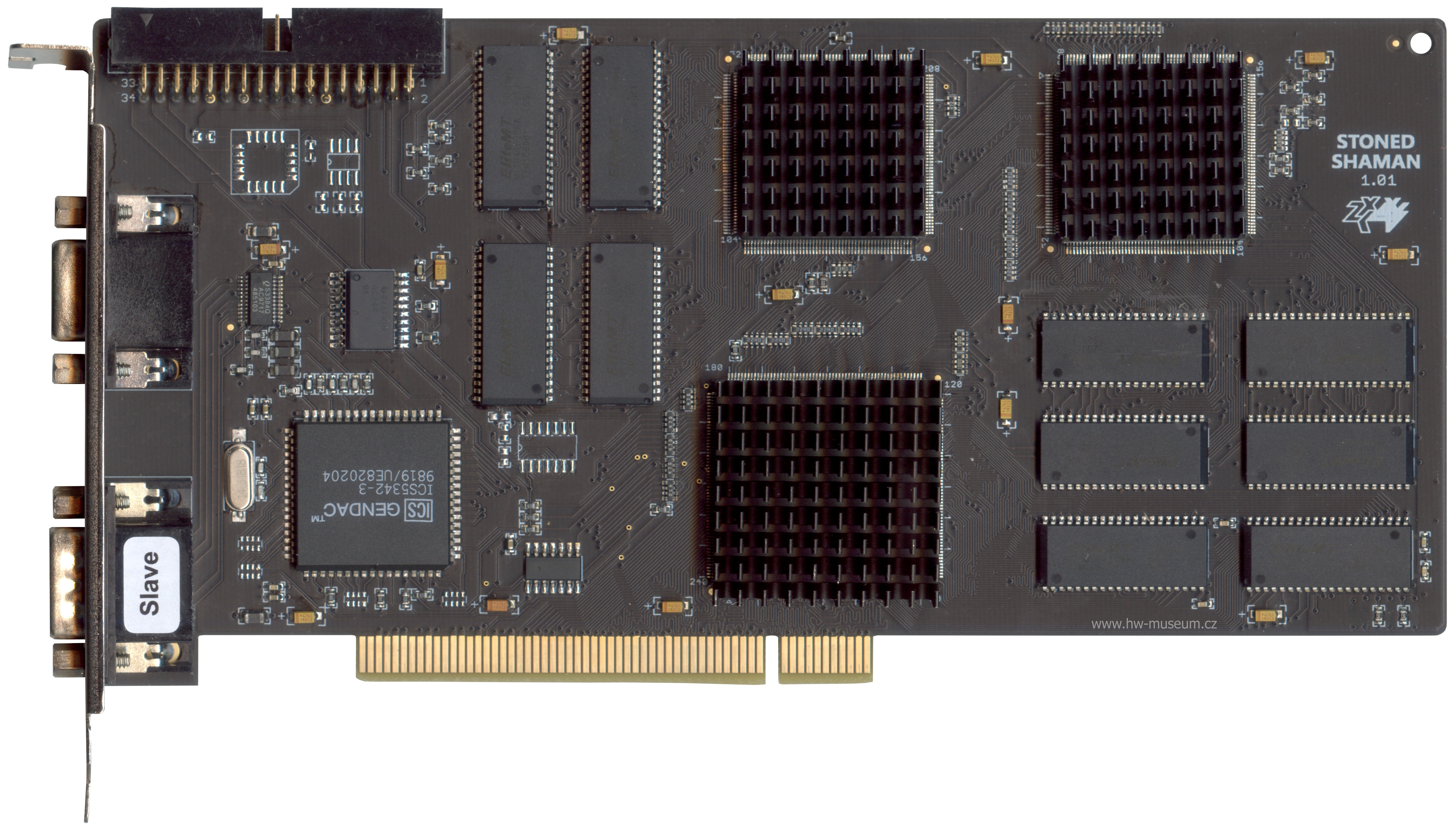

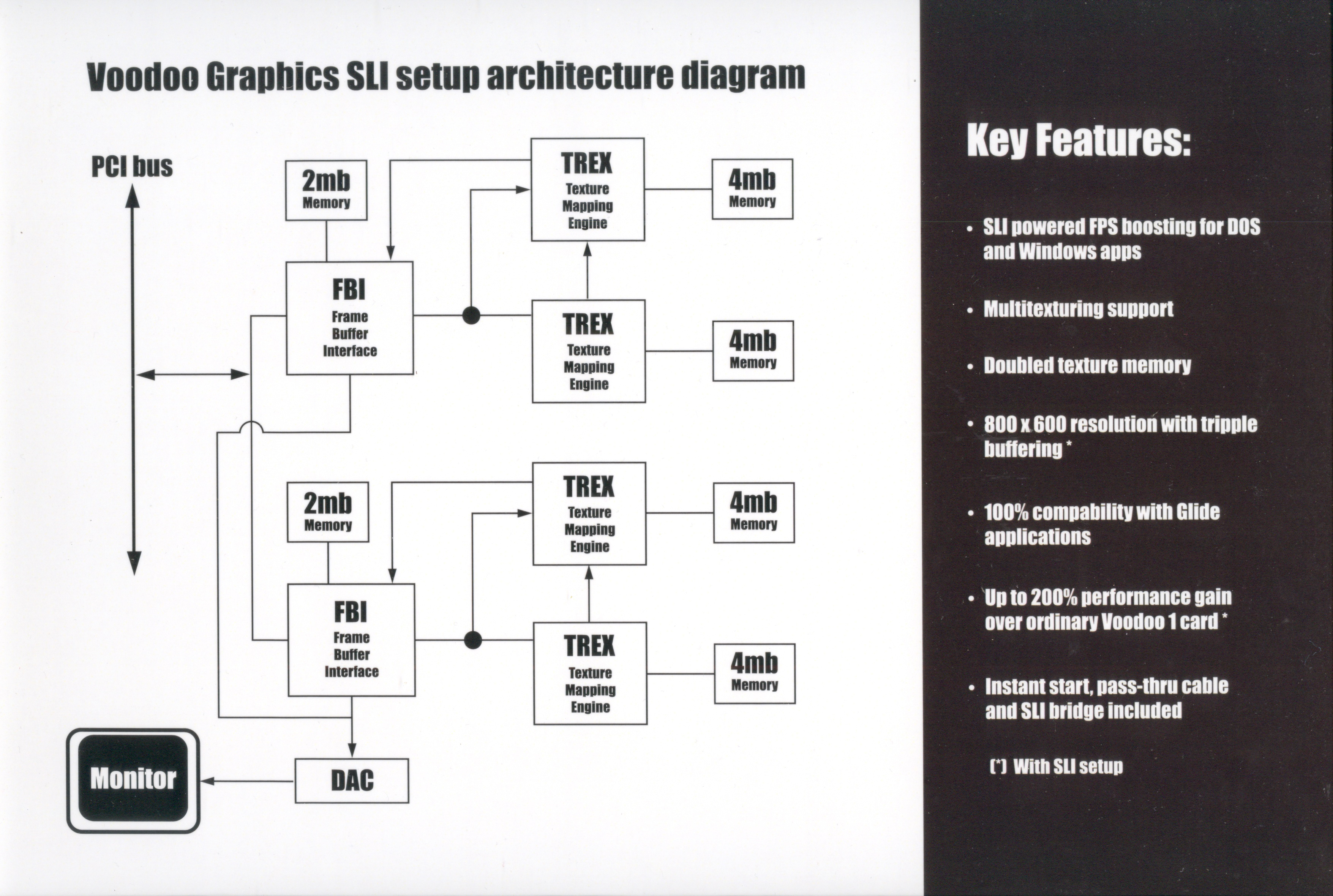

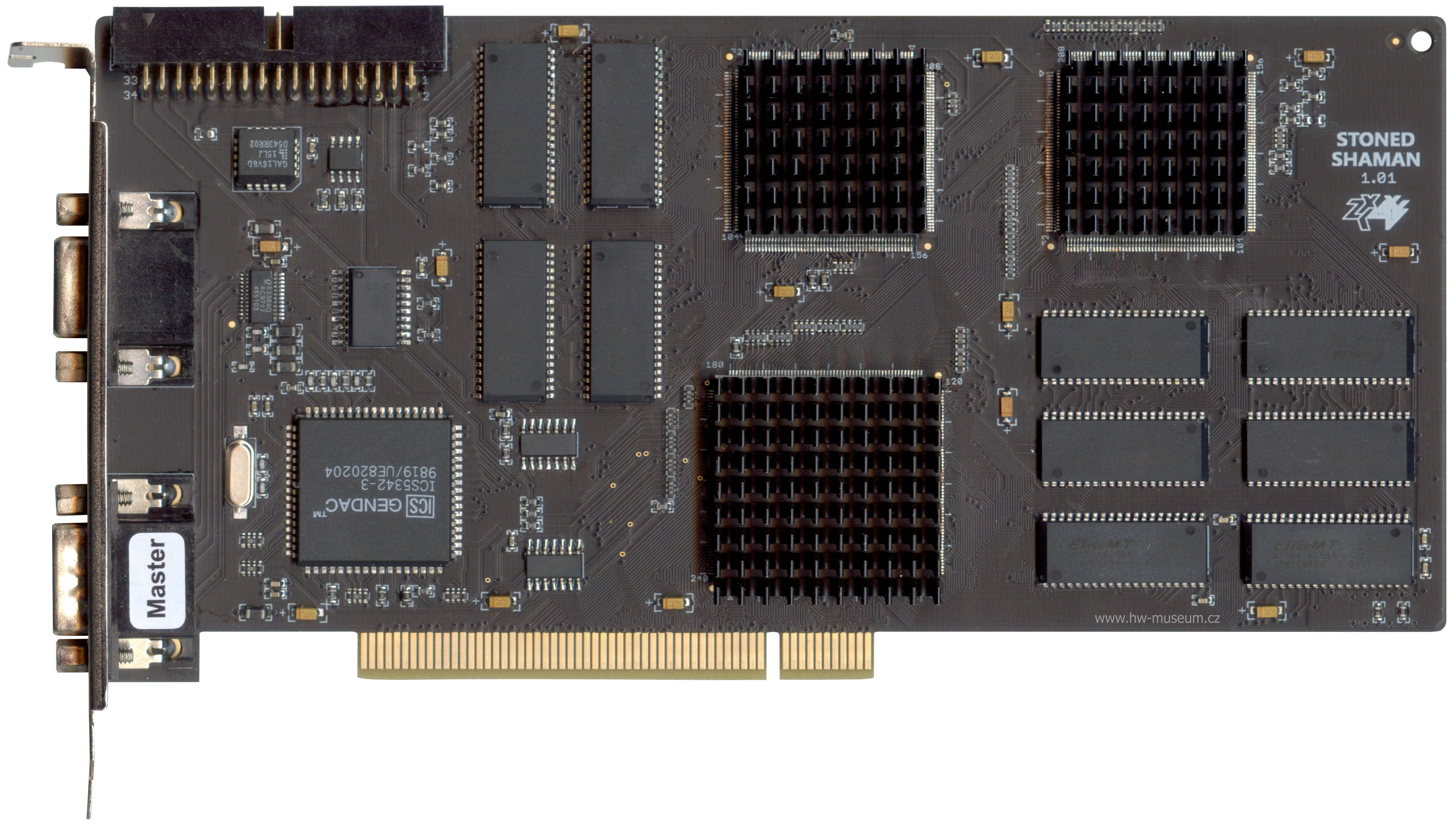

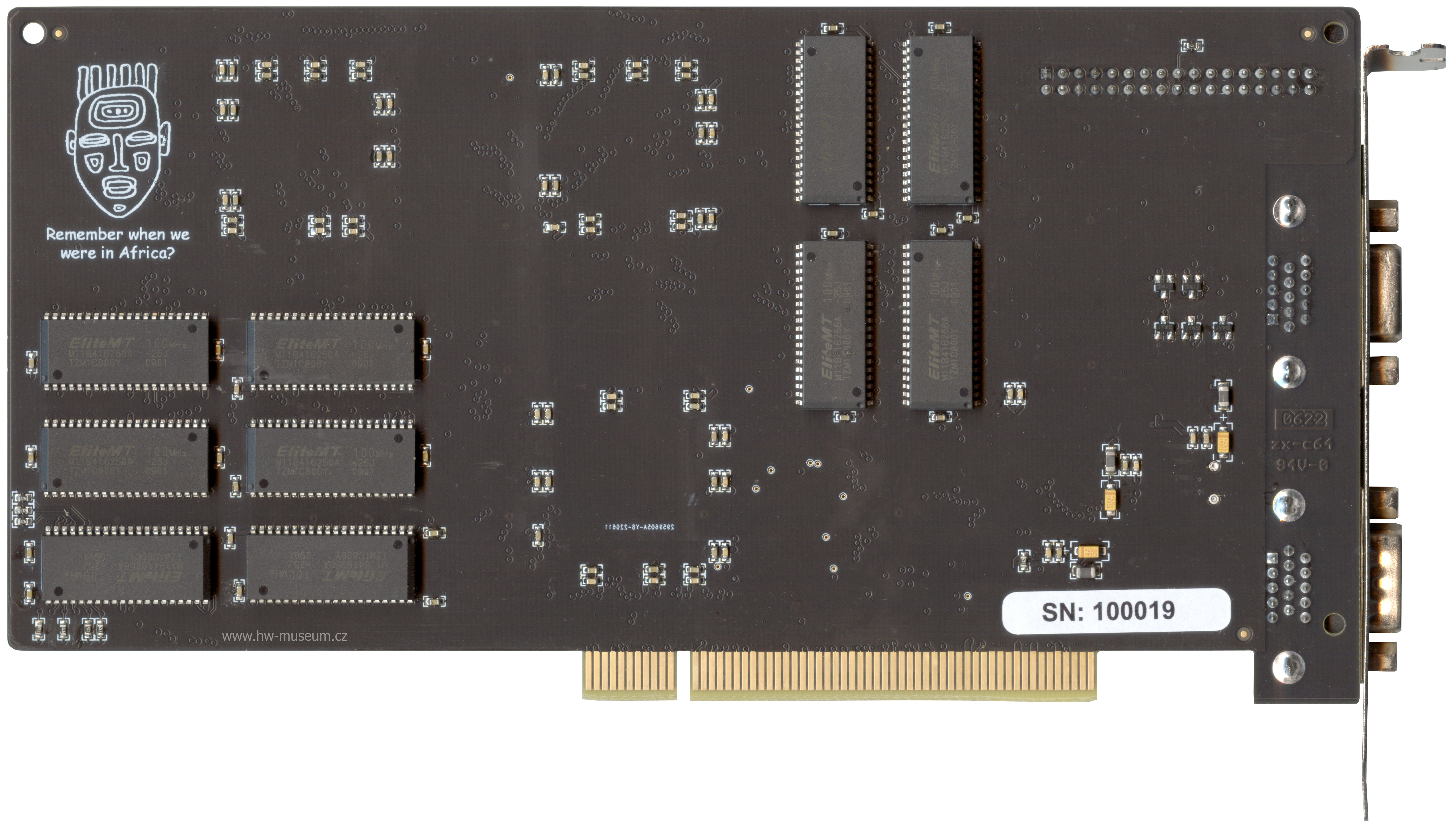

Note: Modern replica of Quantum3D Obsidian 50 2440. There are two cards - Master and Slave, that can be connected to SLI mode. In SLI 800×600 resolution is possible.
| GPU | |
|---|---|
| GPU type | SST1 (2 TMU) |
| Manufacturing process | 500 nm |
| Transistors | 2 million |
| Die size | 201 mm2 |
| Density | 0.007 M / mm2 |
| ROPs | 1 |
| TMUs | 2 |
| Pixel shaders | - |
| Vertex shaders | - |
| Unified shaders | - |
| Clock | 50 MHz |
| Pixel fillrate | 50 MP/s |
| Texel fillrate | 100 MT/s |
| SP gigaflops | - |
| DP gigaflops | - |
| DirectX | 5 |
| OpenGL | 1.1 |
| OpenCL / Compute ver. | - |
| Memory | |
|---|---|
| Capacity | 10 MB |
| Type | EDO |
| Clock | 50 MHz |
| Bus width | 192 bit |
| Bandwith | 1 200 MB/s |
| Rated speed | 100 MHz |
| Brand | EliteMT |
| The card | |
| Manufacturer | ZXC64 |
| Interface | PCI |
| Interface bandwith | 133 MB/s |
| TDP | - |
| Analog I/O ports | 1 × VGA |
| Digital I/O ports | - |
| Independent screens | 1 |
| Manufacture date | 6th week of 2022 |
| Release date | 2022 |
