ATi Radeon HD 5870 (chip only)
Published: (last update )
| GPU | |
|---|---|
| GPU type | Cypress |
| Manufacturing process | 40 nm |
| Transistors | 2 154 million |
| Die size | 334 mm2 |
| Density | 6.45 M / mm2 |
| ROPs | 32 |
| TMUs | 80 |
| Pixel shaders | - |
| Vertex shaders | - |
| Unified shaders | 1 600 |
| Clock | 850 MHz |
| Pixel fillrate | 27 200 MP/s |
| Texel fillrate | 68 000 MT/s |
| SP gigaflops | 2 720 |
| DP gigaflops | 544 |
| DirectX | 11 |
| OpenGL | 4.5 |
| OpenCL / Compute ver. | 1.2 / - |
| Memory | |
|---|---|
| Capacity | - |
| Type | - |
| Clock | 4 800 MHz |
| Bus width | 256 bit |
| Bandwith | 153 600 MB/s |
| Rated speed | - |
| Brand | - |
| The card | |
| Manufacturer | ATi |
| Interface | PCI-E 2.0 x16 |
| Interface bandwith | 8 192 MB/s |
| TDP | - |
| Analog I/O ports | - |
| Digital I/O ports | - |
| Independent screens | 6 |
| Manufacture date | 36th week of 2009 |
| Release date | 2009 |

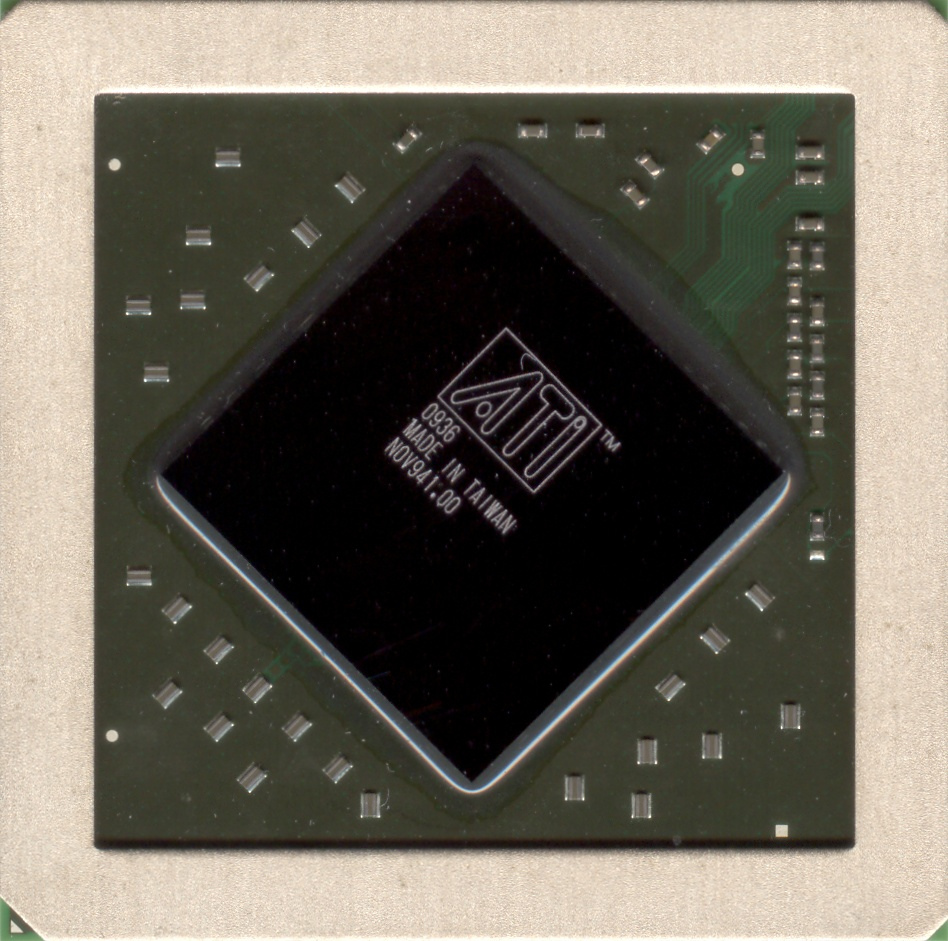

_F.jpg "Click to enlarge")

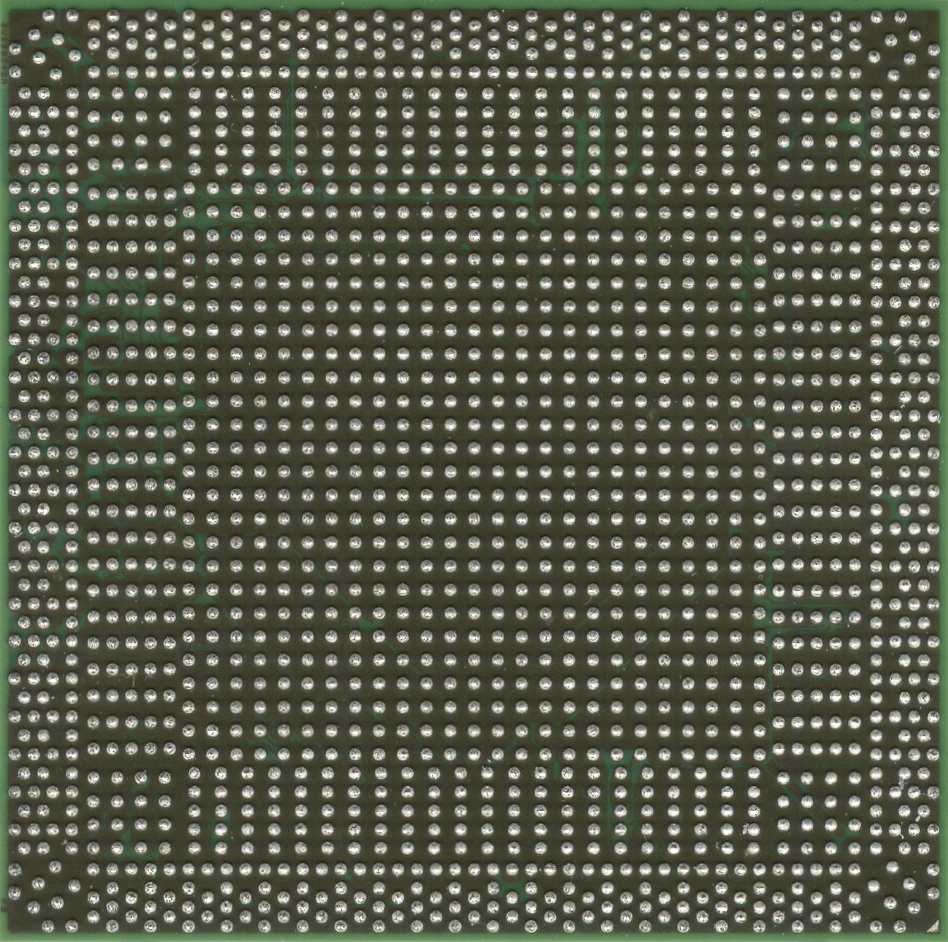

_B.jpg "Click to enlarge")
