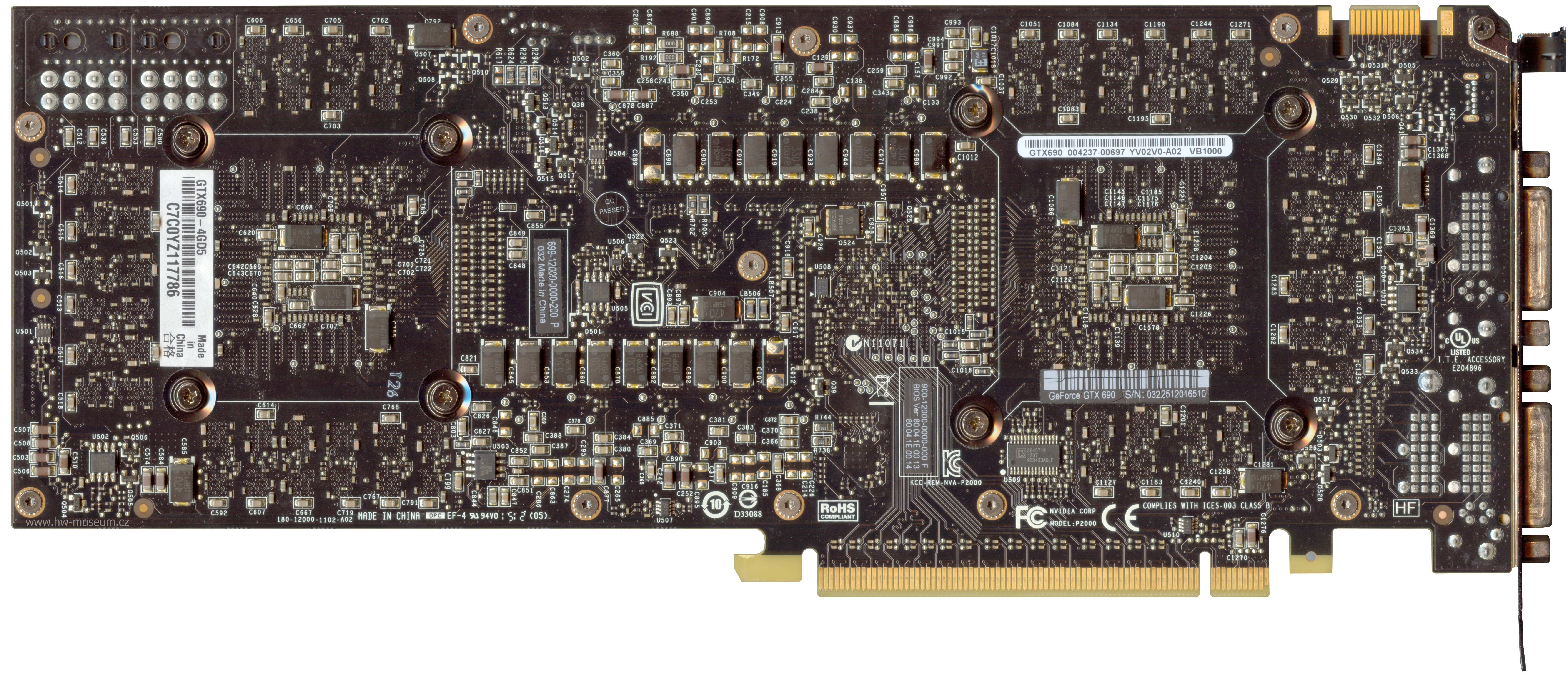

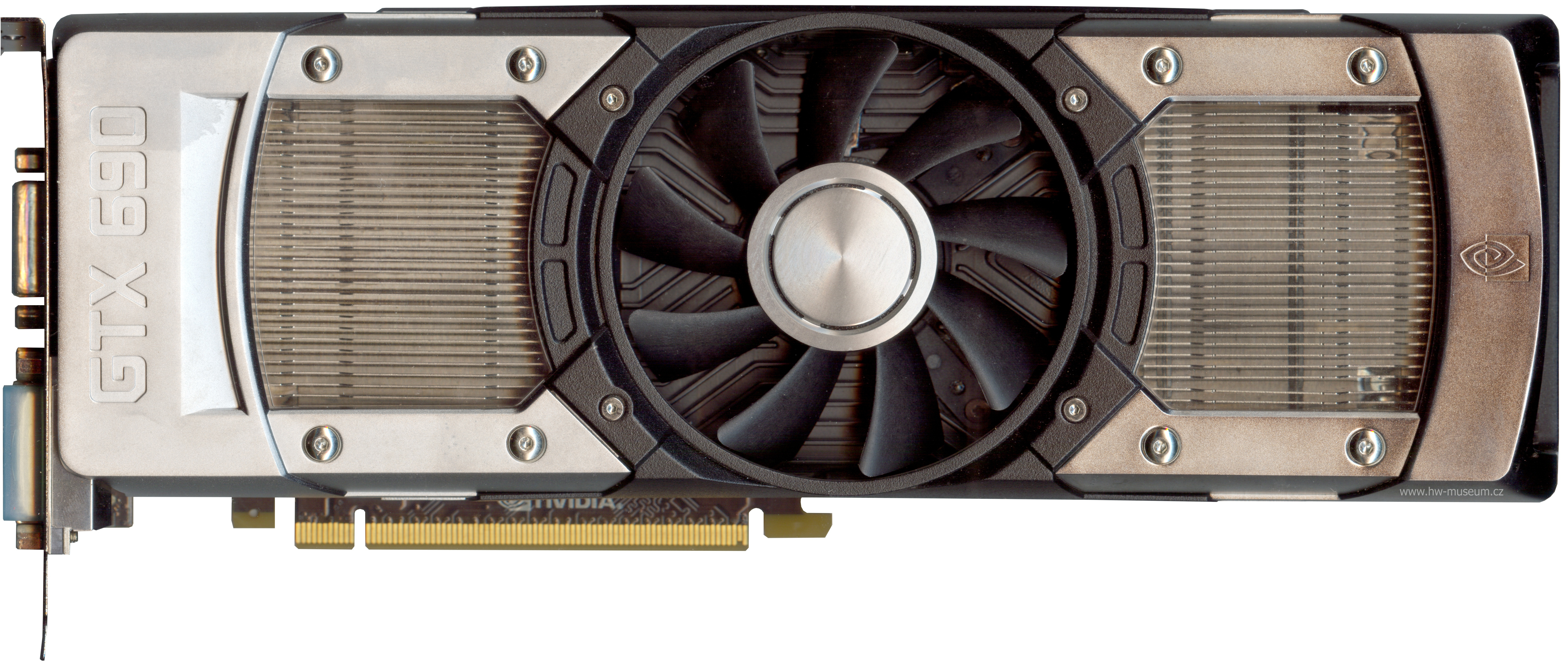

Asus GeForce GTX 690
Published: (last update )
| GPU | |
|---|---|
| GPU type | 2 × GK104 |
| Manufacturing process | 28 nm |
| Transistors | 7 080 million |
| Die size | 588 mm2 |
| Density | 12.0 M / mm2 |
| ROPs | 64 |
| TMUs | 256 |
| Pixel shaders | - |
| Vertex shaders | - |
| Unified shaders | 3 072 |
| Clock | 1 020 MHz |
| Pixel fillrate | 65 280 MP/s |
| Texel fillrate | 261 120 MT/s |
| SP gigaflops | 6 267 |
| DP gigaflops | 261 |
| DirectX | 12 |
| OpenGL | 4.6 |
| OpenCL / Compute ver. | 1.2 / 3.0 |
| Memory | |
|---|---|
| Capacity | 4 096 MB |
| Type | GDDR5 |
| Clock | 6 000 MHz |
| Bus width | 512 bit |
| Bandwith | 384 000 MB/s |
| Rated speed | - |
| Brand | Samsung |
| The card | |
| Manufacturer | Asus |
| Interface | PCI-E 3.0 x16 |
| Interface bandwith | 16 384 MB/s |
| TDP | 256 W |
| Analog I/O ports | 2 × DVI-I |
| Digital I/O ports | 1 × DVI-D, 2 × DVI-I, 1 × DP |
| Independent screens | 4 |
| Manufacture date | - |
| Release date | 2012 |
