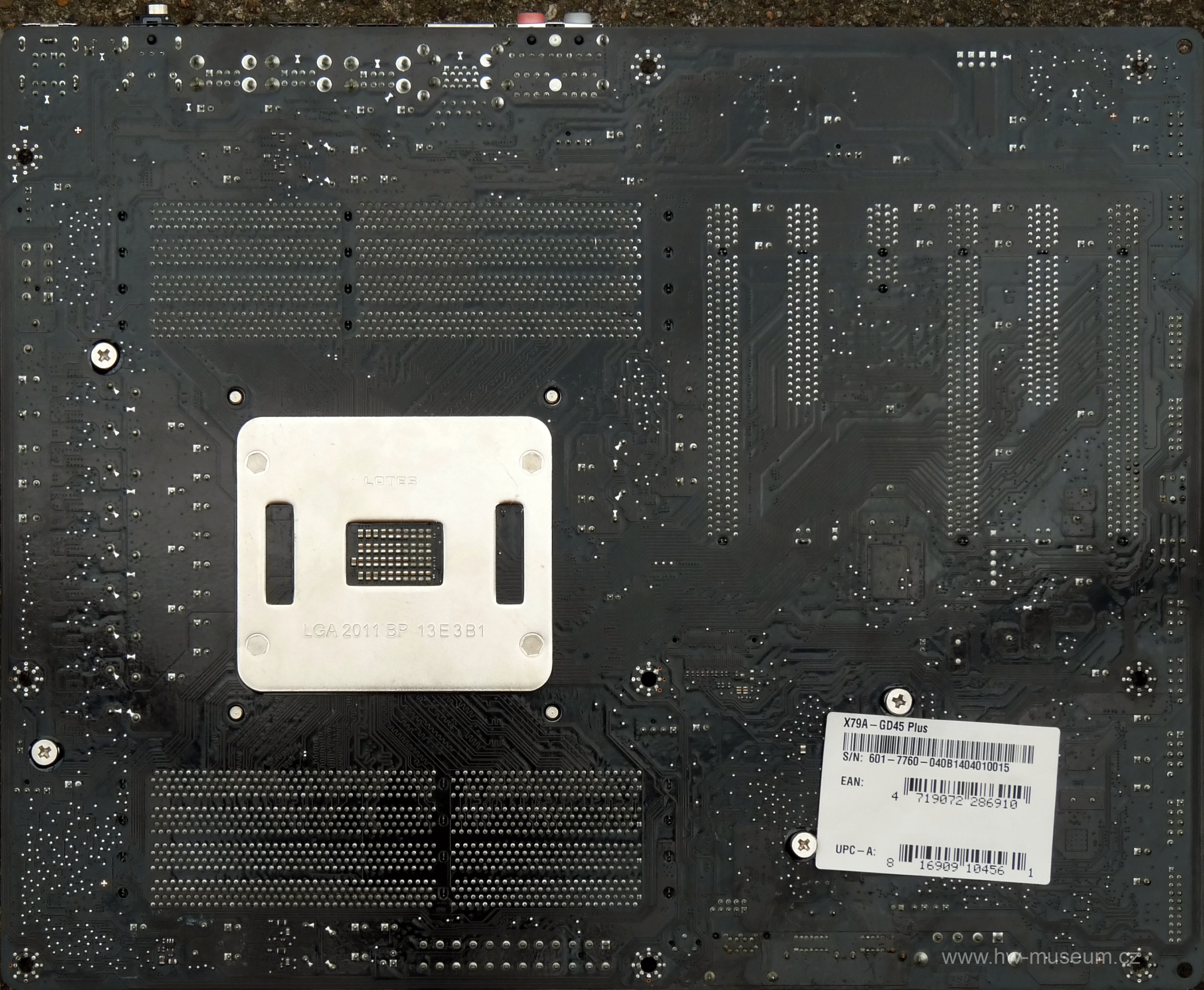

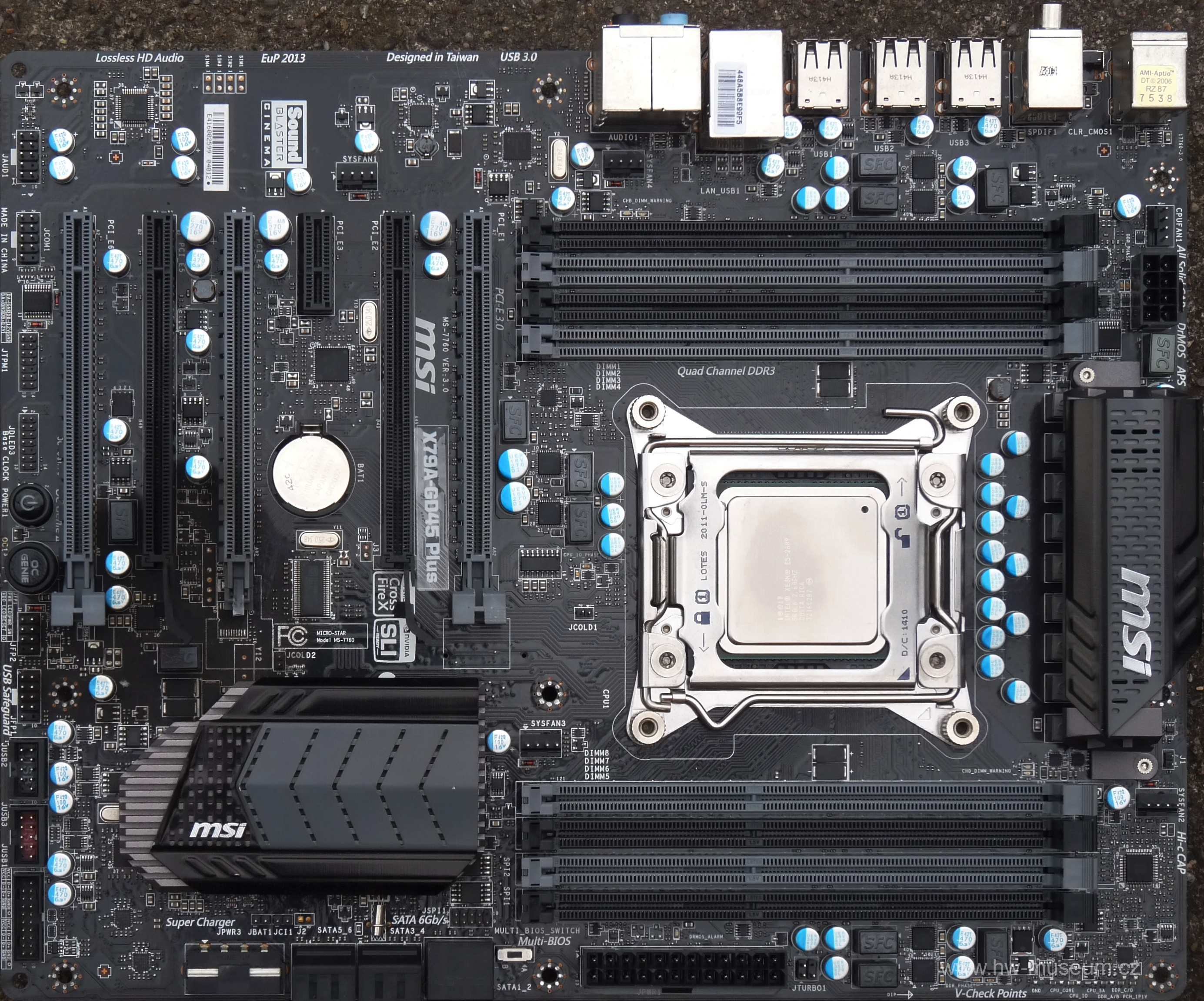

MSI X79A-GD45 Plus
Published: (last update )
| Chipset | |
|---|---|
| Model | Intel X79 |
| Northbridge | SB-E IMC |
| Southbridge | X79 |
| Bus type | DMI 2.0, 100 MHz, - bit |
| Bus bandwith | 0 MB/s |
| RAM type (1) | DDR3 2400 MHz, 256 bit |
| RAM type (2) | - |
| RAM bandwidth | 76 800 MB/s |
| Maximum RAM | 131 072 MB |
| Reg. / ECC support | no / no |
| NB PCI-E lanes | 40 (3.0) |
| AGP | - |
| PCI support | - |
| Integrated VGA | - |
| The board | |
|---|---|
| Socket | socket 2011 |
| Supported CPUs | Core i7, Xeon E5 |
| Fastest CPU | Core i7 4960X, Xeon E5-2697 v2 |
| RAM slots | 8 × DDR3 |
| AGP | - |
| PCI-E x16, x8, x4, x1 | 5, -, -, 1 |
| PCI-X / PCI / ISA | -, -, - |
| IDE | - |
| SATA | 4 × (300) + 2 × (600) |
| USB / Firewire | 10 × (2.0), 4 × (3.0) |
| LAN | 1 × 1000 Mb/s |
| Format | ATX (305x244) |
| Release date | 2013 |
