MSI MS-6168 V2
Published: (last update )

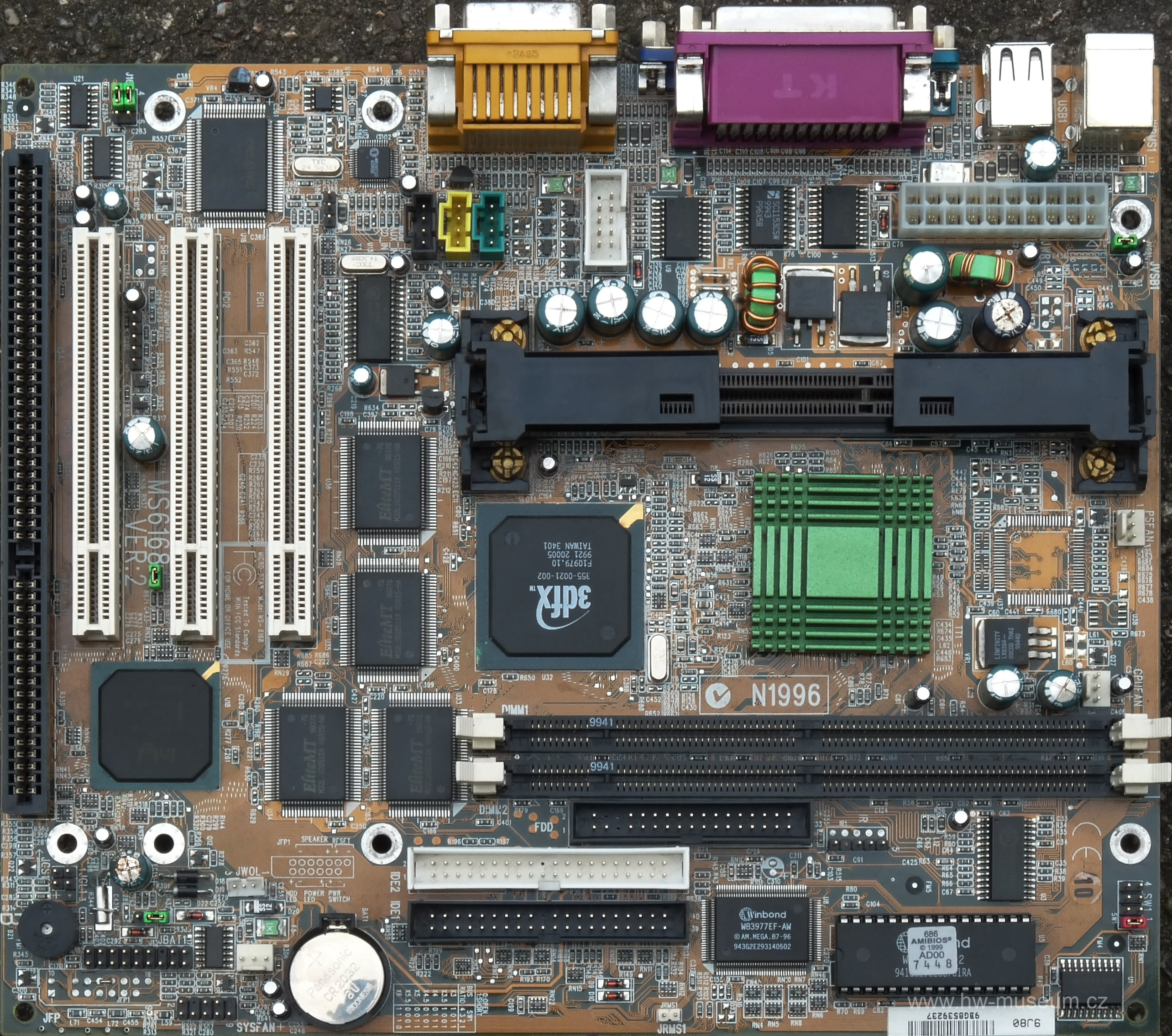

Note: Onboard Voodoo3 2000 AGP. It runs at 143 MHz, 8 MB SGRAM. V2 PCB supports TV-OUT but this piece doesn't have the components soldered. The GPU heatsink is missing.
| Chipset | |
|---|---|
| Model | Intel 440ZX |
| Northbridge | 82443ZX |
| Southbridge | PIIX4E |
| Bus type | SDR, 100 MHz, 64 bit |
| Bus bandwith | 800 MB/s |
| RAM type (1) | SDR 100 MHz, 64 bit |
| RAM type (2) | - |
| RAM bandwidth | 800 MB/s |
| Maximum RAM | 512 MB |
| Reg. / ECC support | no / no |
| NB PCI-E lanes | - |
| AGP | - |
| PCI support | 2.1 |
| Integrated VGA | 3dfx Voodoo3 2000 8 MB |
| The board | |
|---|---|
| Socket | slot 1 |
| Supported CPUs | Pentium II/III, Celeron |
| Fastest CPU | Pentium III 1100 |
| RAM slots | 2 × SDR |
| AGP | - |
| PCI-E x16, x8, x4, x1 | , -, -, -, - |
| PCI-X / PCI / ISA | -, 3, 1 |
| IDE | 2 × ATA 33 |
| SATA | - |
| USB / Firewire | 2 × (1.1) |
| LAN | - |
| Format | microATX (244x208) |
| Release date | 1999 |
