3dfx Voodoo3 3000 AGP rev. C1 (old PCB)
Published: (last update )
| GPU | |
|---|---|
| GPU type | Avenger |
| Manufacturing process | 250 nm |
| Transistors | 8 million |
| Die size | 74 mm2 |
| Density | 0.11 M / mm2 |
| ROPs | 1 |
| TMUs | 2 |
| Pixel shaders | - |
| Vertex shaders | - |
| Unified shaders | - |
| Clock | 166 MHz |
| Pixel fillrate | 166 MP/s |
| Texel fillrate | 332 MT/s |
| SP gigaflops | - |
| DP gigaflops | - |
| DirectX | 6 |
| OpenGL | 1.1 |
| OpenCL / Compute ver. | - |
| Memory | |
|---|---|
| Capacity | 16 MB |
| Type | SDRAM |
| Clock | 166 MHz |
| Bus width | 128 bit |
| Bandwith | 2 656 MB/s |
| Rated speed | 166 MHz |
| Brand | Vanguard |
| The card | |
| Manufacturer | 3dfx |
| Interface | AGP 2x |
| Interface bandwith | 533 MB/s |
| TDP | 11 W |
| Analog I/O ports | 1 × VGA, 1 × S-Video out |
| Digital I/O ports | - |
| Independent screens | 1 |
| Manufacture date | 20th week of 1999 |
| Release date | 1999 |

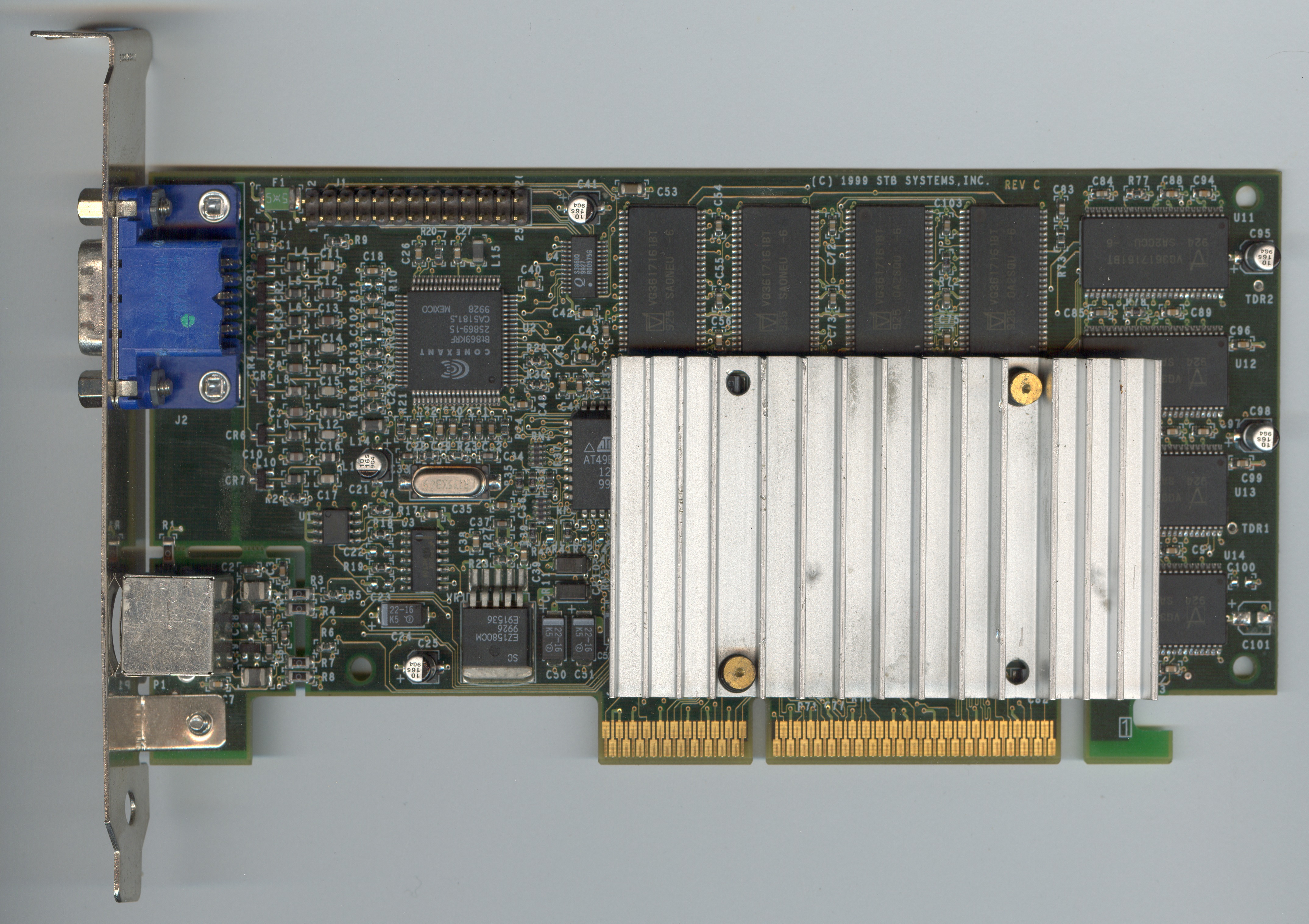

_F.jpg "Click to enlarge")

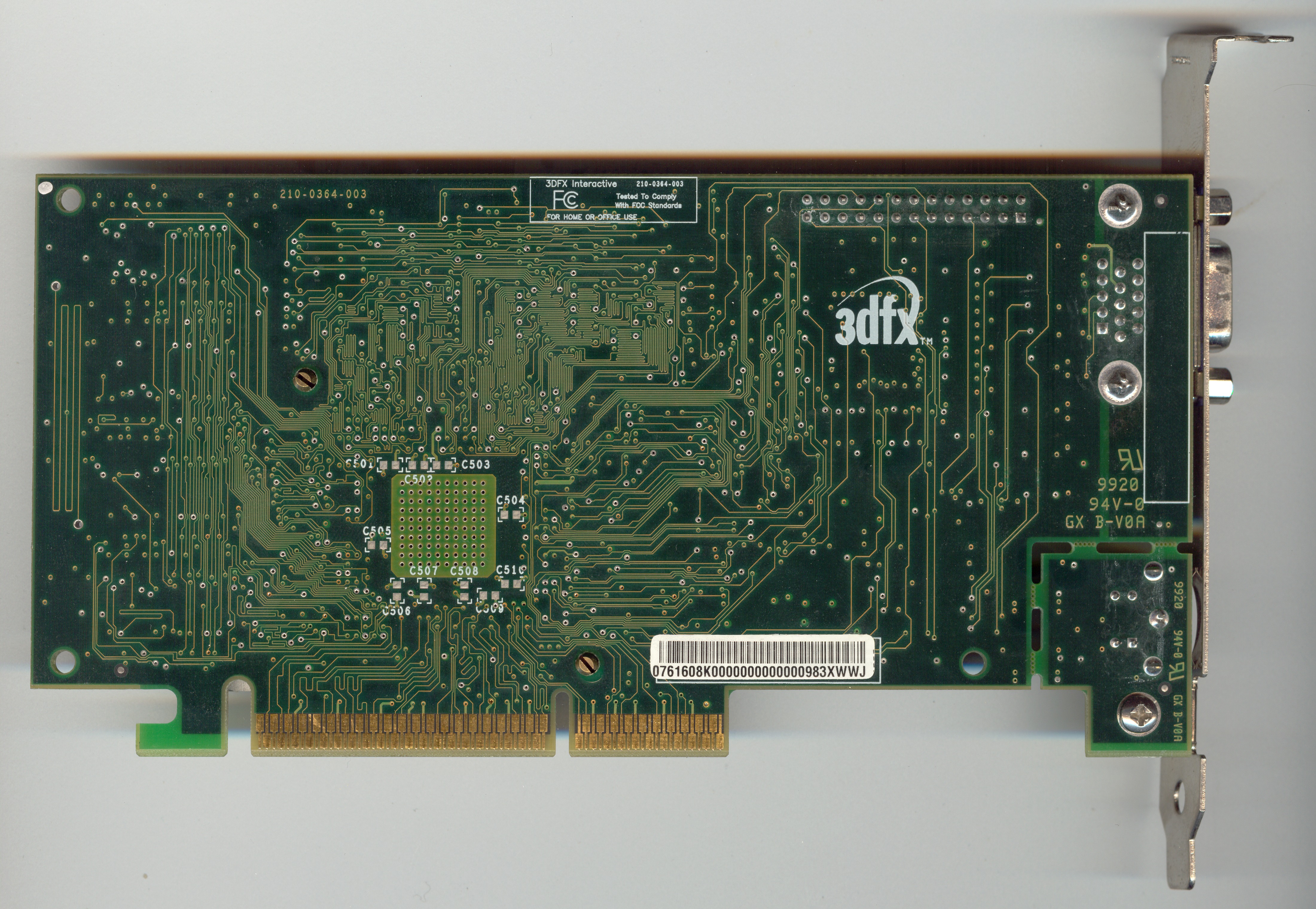

_B.jpg "Click to enlarge")
