3dfx Voodoo3 2000 PCI SGR rev. C3

Published: (last update )

GPU
GPU type Avenger
Manufacturing process250 nm
Transistors8 million
Die size74 mm2
Density0.11 M / mm2
ROPs1
TMUs2
Pixel shaders-
Vertex shaders-
Unified shaders-
Clock143 MHz
Pixel fillrate143 MP/s
Texel fillrate286 MT/s
SP gigaflops-
DP gigaflops-
DirectX6
OpenGL1.1
OpenCL / Compute ver.-
Memory
Capacity16 MB
TypeSGRAM
Clock143 MHz
Bus width128 bit
Bandwith2 288 MB/s
Rated speed166 MHz
BrandSamsung
The card
Manufacturer3dfx
InterfacePCI
Interface bandwith133 MB/s
TDP10 W
Analog I/O ports1 × VGA
Digital I/O ports-
Independent screens1
Manufacture date53rd week of 1999
Release date1999
3dfx Voodoo3 2000 PCI SGR rev. C3 (front side)

3dfx Voodoo3 2000 PCI SGR rev. C3 (front side)

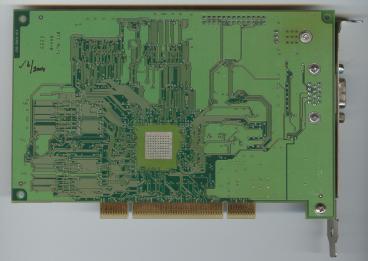

3dfx Voodoo3 2000 PCI SGR rev. C3 (back side)

3dfx Voodoo3 2000 PCI SGR rev. C3 (back side)
