Asus Radeon HD 3870

Published: (last update )

GPU
GPU type RV670
Manufacturing process55 nm
Transistors666 million
Die size192 mm2
Density3.47 M / mm2
ROPs16
TMUs16
Pixel shaders-
Vertex shaders-
Unified shaders320
Clock775 MHz
Pixel fillrate12 400 MP/s
Texel fillrate12 400 MT/s
SP gigaflops497
DP gigaflops99
DirectX10.1
OpenGL3.3
OpenCL / Compute ver.-
Memory
Capacity512 MB
TypeGDDR4
Clock2 250 MHz
Bus width256 bit
Bandwith72 000 MB/s
Rated speed2 400 MHz
BrandHynix
The card
ManufacturerAsus
InterfacePCI-E 2.0 x16
Interface bandwith8 192 MB/s
TDP106 W
Analog I/O ports1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date-
Release date2007

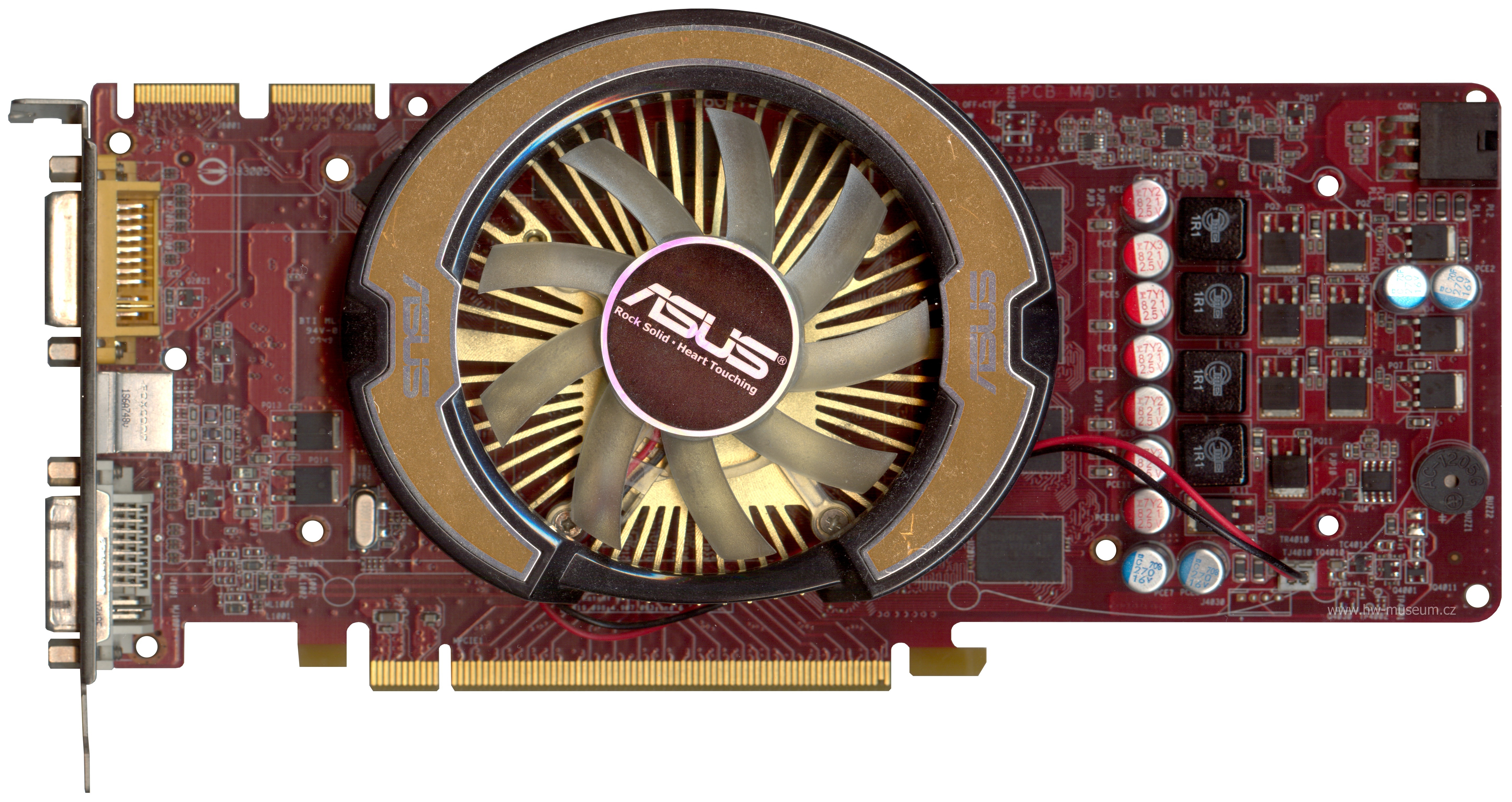

Asus Radeon HD 3870 (front side)

Asus Radeon HD 3870 (front side)

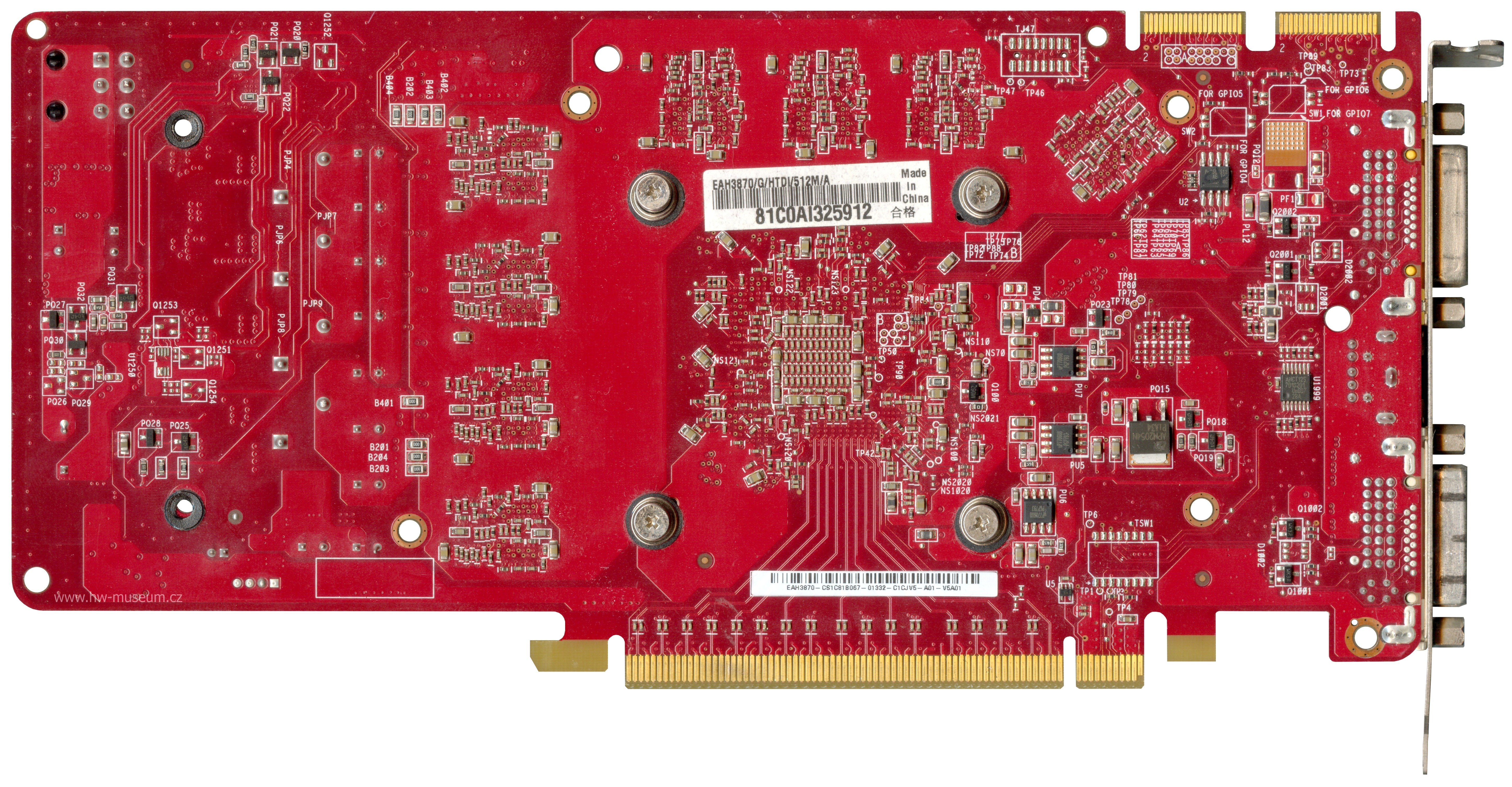

Asus Radeon HD 3870 (back side)

Asus Radeon HD 3870 (back side)
