Asus Radeon HD 2900 XT

Published: (last update )

GPU
GPU type R600
Manufacturing process80 nm
Transistors720 million
Die size420 mm2
Density1.71 M / mm2
ROPs16
TMUs16
Pixel shaders-
Vertex shaders-
Unified shaders320
Clock740 MHz
Pixel fillrate11 840 MP/s
Texel fillrate11 840 MT/s
SP gigaflops476
DP gigaflops-
DirectX10
OpenGL3.3
OpenCL / Compute ver.-
Memory
Capacity512 MB
TypeGDDR3
Clock1 660 MHz
Bus width512 bit
Bandwith106 240 MB/s
Rated speed2 000 MHz
BrandHynix
The card
ManufacturerAsus
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP215 W
Analog I/O ports1 × S-Video in, 1 × S-Video out, 2 × DVI-I
Digital I/O ports2 × DVI-I
Independent screens2
Manufacture date-
Release date2007

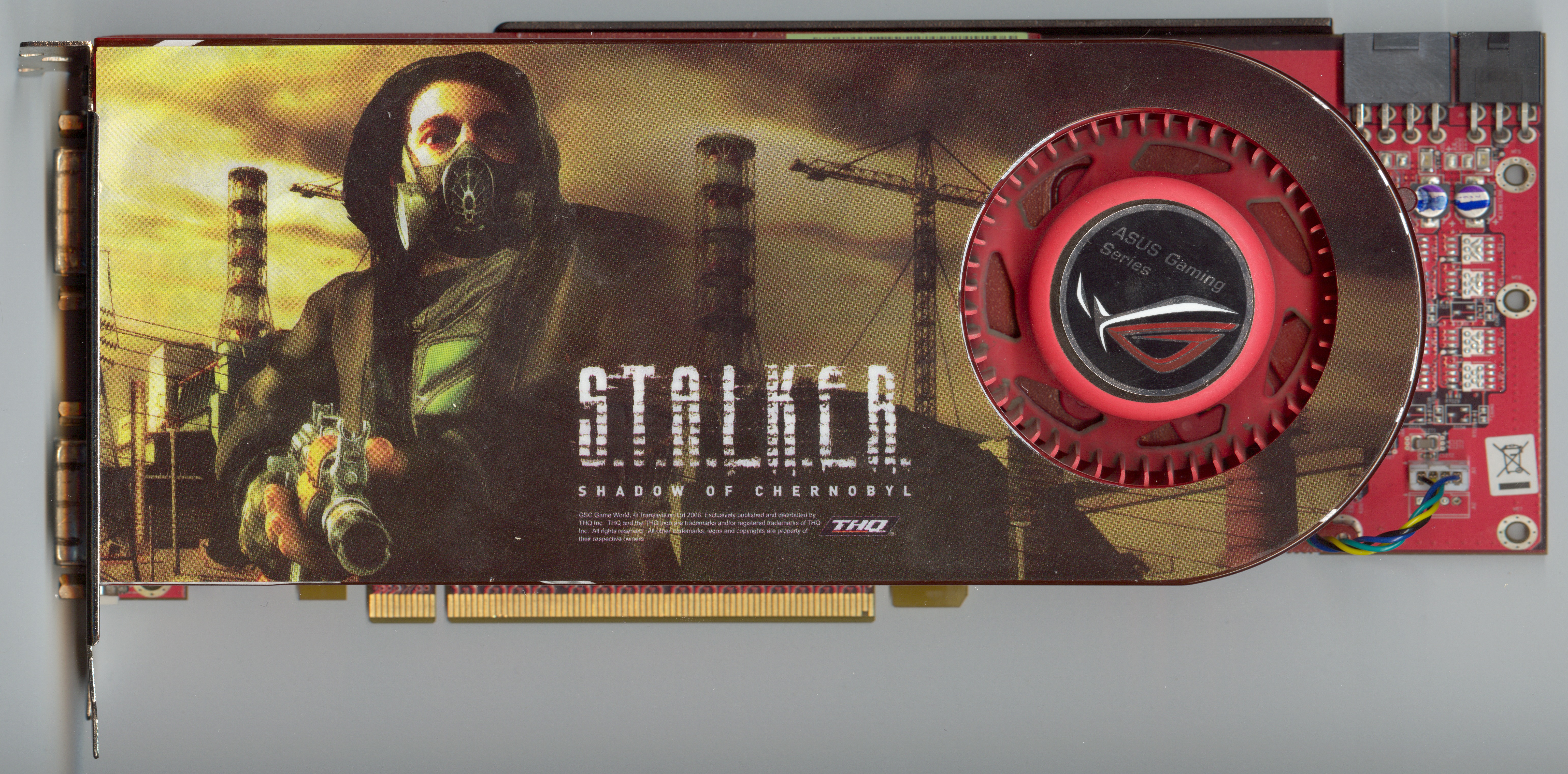

Asus Radeon HD 2900 XT (front side)

Asus Radeon HD 2900 XT (front side)

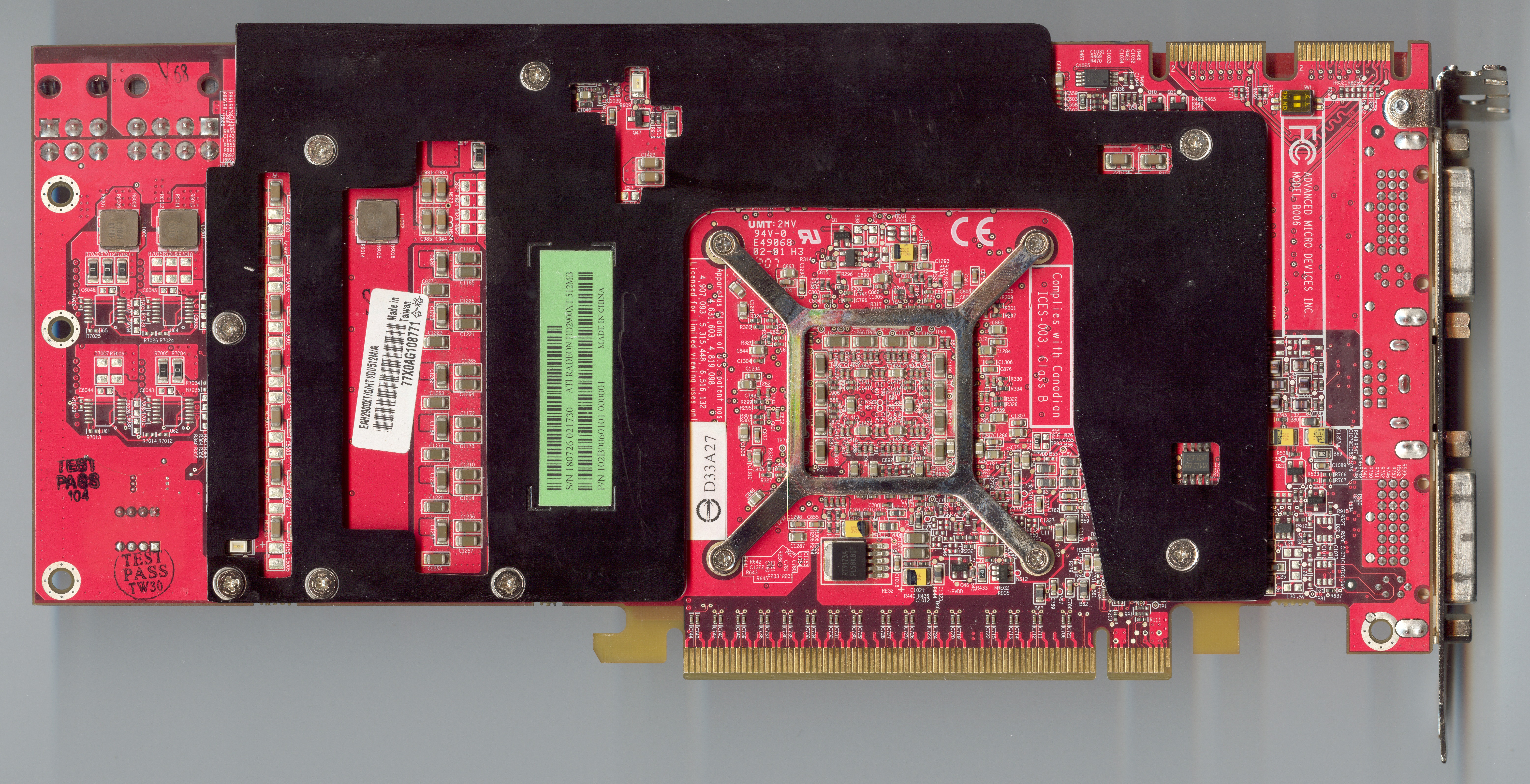

Asus Radeon HD 2900 XT (back side)

Asus Radeon HD 2900 XT (back side)
