Sapphire Radeon X1600 XT

Published: (last update )

GPU
GPU type RV530
Manufacturing process90 nm
Transistors157 million
Die size150 mm2
Density1.05 M / mm2
ROPs4
TMUs4
Pixel shaders12
Vertex shaders5
Unified shaders-
Clock590 MHz
Pixel fillrate2 360 MP/s
Texel fillrate2 360 MT/s
SP gigaflops-
DP gigaflops-
DirectX9c
OpenGL2.0
OpenCL / Compute ver.-
Memory
Capacity256 MB
TypeGDDR3
Clock1 400 MHz
Bus width128 bit
Bandwith22 400 MB/s
Rated speed-
Brand-
The card
ManufacturerSapphire
InterfacePCI-E x16
Interface bandwith4 096 MB/s
TDP42 W
Analog I/O ports1 × VGA, 1 × S-Video out, 1 × DVI-I
Digital I/O ports1 × DVI-I
Independent screens2
Manufacture date-
Release date2005

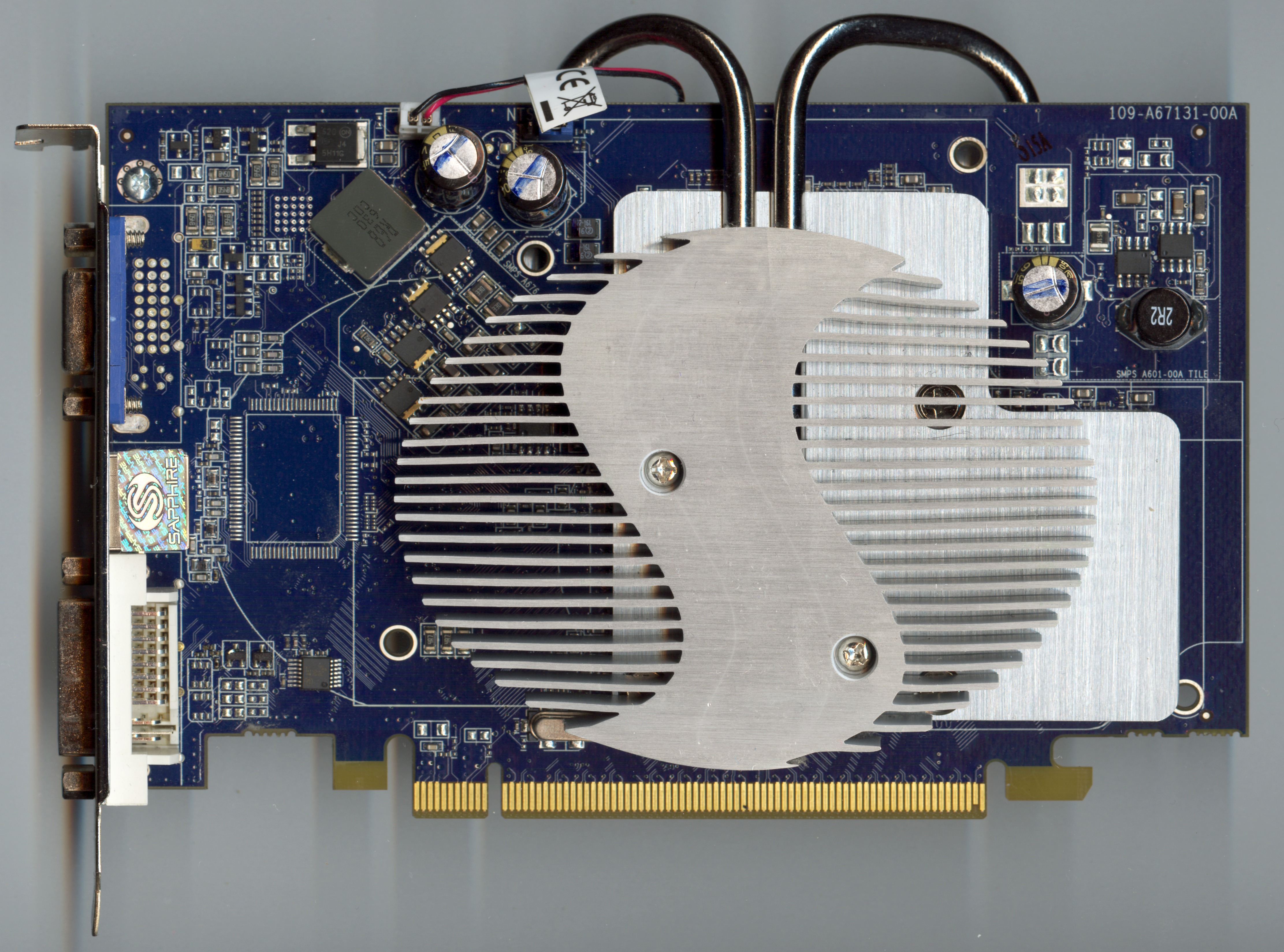

Sapphire Radeon X1600 XT (front side)

Sapphire Radeon X1600 XT (front side)

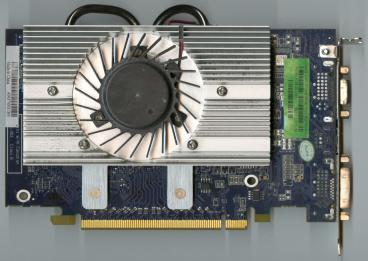

Sapphire Radeon X1600 XT (back side)

Sapphire Radeon X1600 XT (back side)
