Gigabyte GA-8IPE1000-G

Published: (last update )

Chipset
ModelIntel 865PE
Northbridge82865PE
SouthbridgeICH5
Bus typeQDR, 800 MHz, 64 bit
Bus bandwith6 400 MB/s
RAM type (1)DDR 400 MHz, 128 bit
RAM type (2)-
RAM bandwidth6 400 MB/s
Maximum RAM4 096 MB
Reg. / ECC supportno / no
NB PCI-E lanes -
AGP
PCI support2.2
Integrated VGA-
The board
Socketsocket 478
Supported CPUsPentium 4, Celeron, Celeron D
Fastest CPUPentium 4 EE 3.4 GHz
RAM slots4 × DDR
AGP4× - 8× ; 1.5V - 0.8V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 5, -
IDE2 × ATA 100
SATA2 × (150)
USB / Firewire8 × (2.0)
LAN1 × 1000 Mb/s
FormatATX (305x230)
Release date2003
Gigabyte GA-8IPE1000-G (front side)

Gigabyte GA-8IPE1000-G (front side)

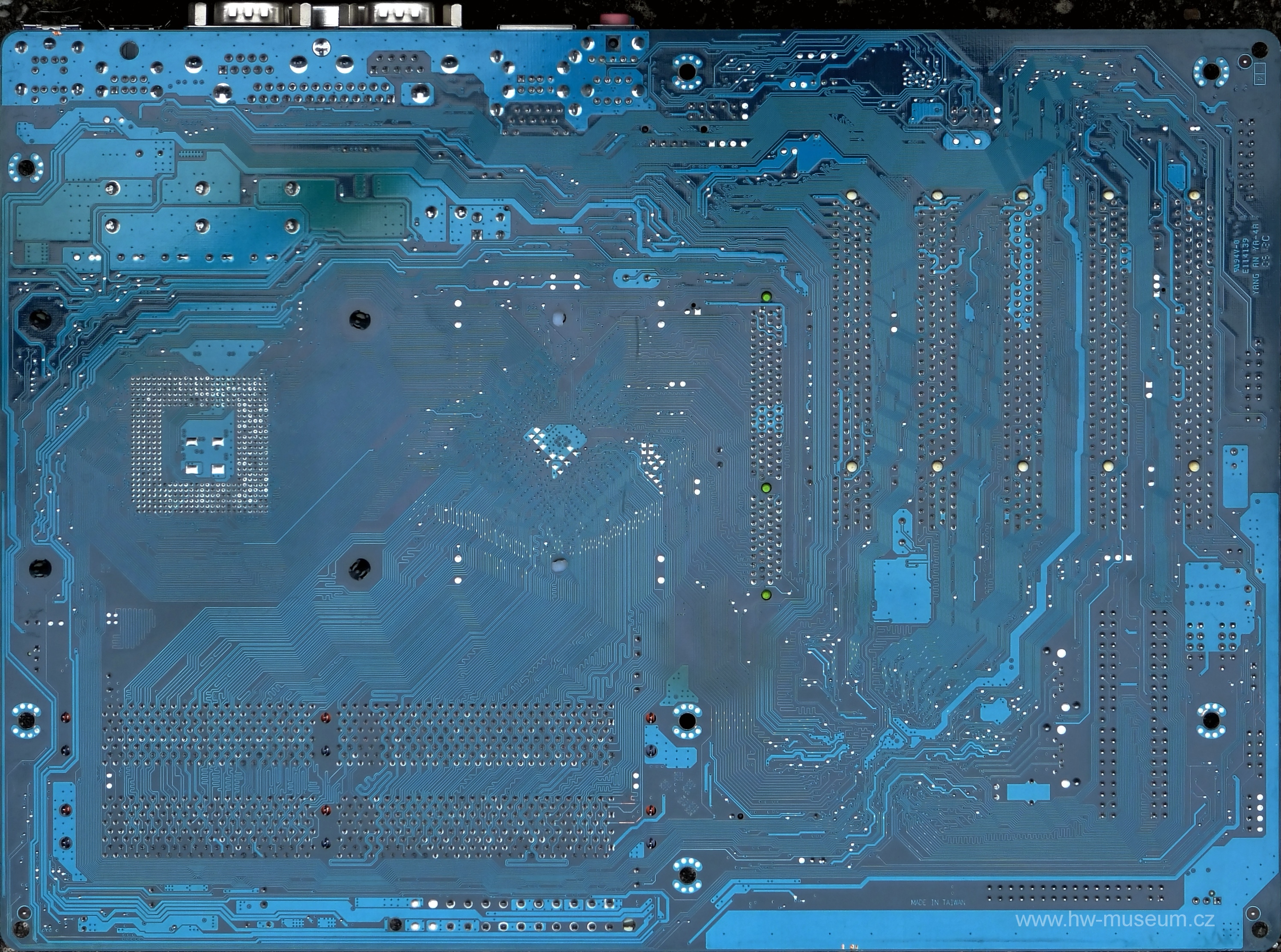

Gigabyte GA-8IPE1000-G (back side)

Gigabyte GA-8IPE1000-G (back side)
