Asus PC-DL Deluxe

Published: (last update )

Chipset
ModelIntel 875P
Northbridge82875P
SouthbridgeICH5R
Bus typeQDR, 533 MHz, 64 bit
Bus bandwith4 264 MB/s
RAM type (1)DDR 333 MHz, 128 bit
RAM type (2)-
RAM bandwidth5 328 MB/s
Maximum RAM4 096 MB
Reg. / ECC supportno / yes
NB PCI-E lanes -
AGP
PCI support2.2
Integrated VGA-
The board
Socket2x socket 604
Supported CPUsXeon Prestonia, Gallatin
Fastest CPU2x Xeon 3.2 GHz (2MB L3)
RAM slots4 × DDR
AGP4× - 8× ; 1.5V - 0.8V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 5, -
IDE2 × ATA 100 + 1 × ATA 133
SATA2 × (150) + 2 × (150)
USB / Firewire8 × (2.0) / 2
LAN1 × 1000 Mb/s
FormatATX (305x244)
Release date2003

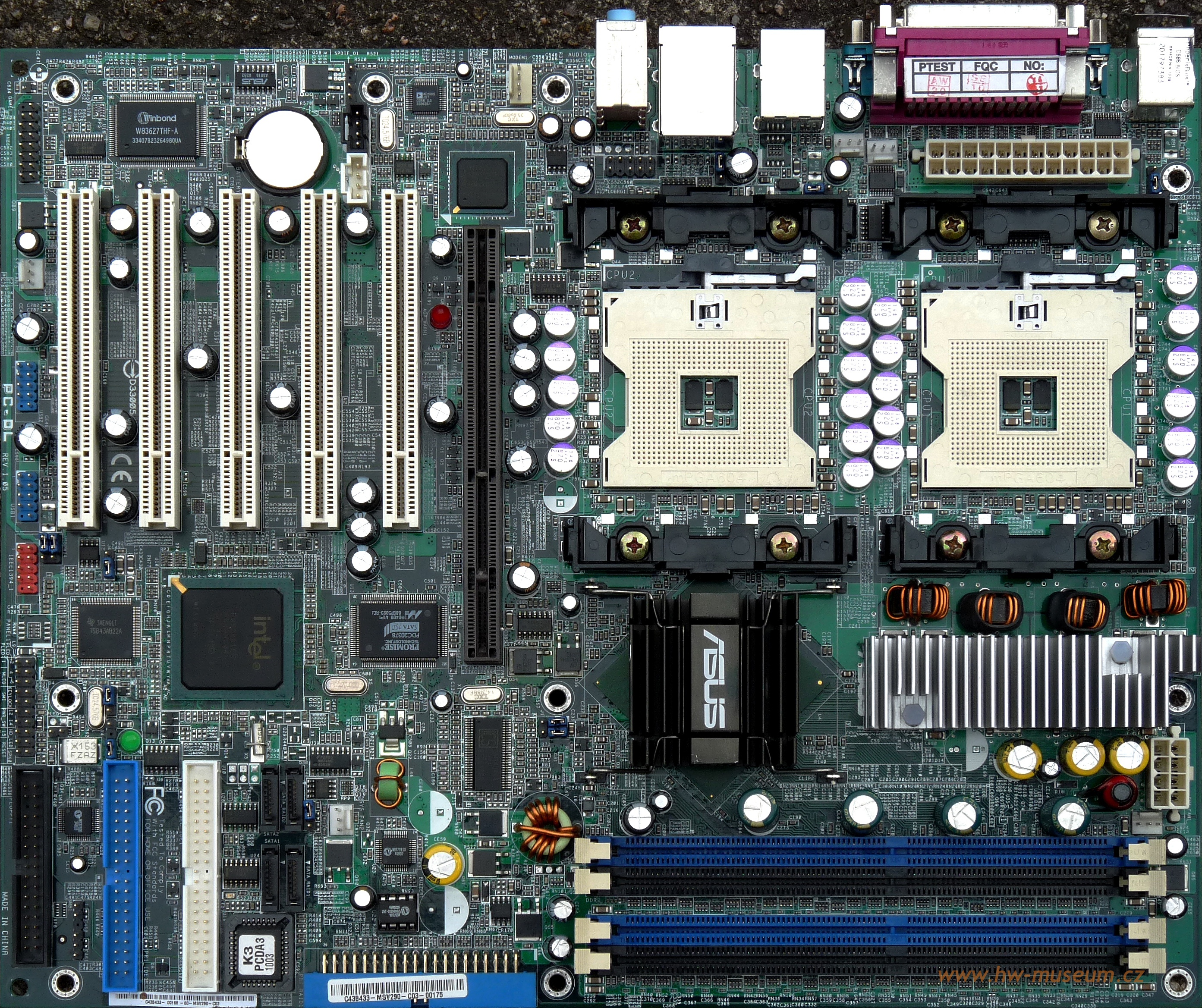

Asus PC-DL Deluxe (front side)

Asus PC-DL Deluxe (front side)

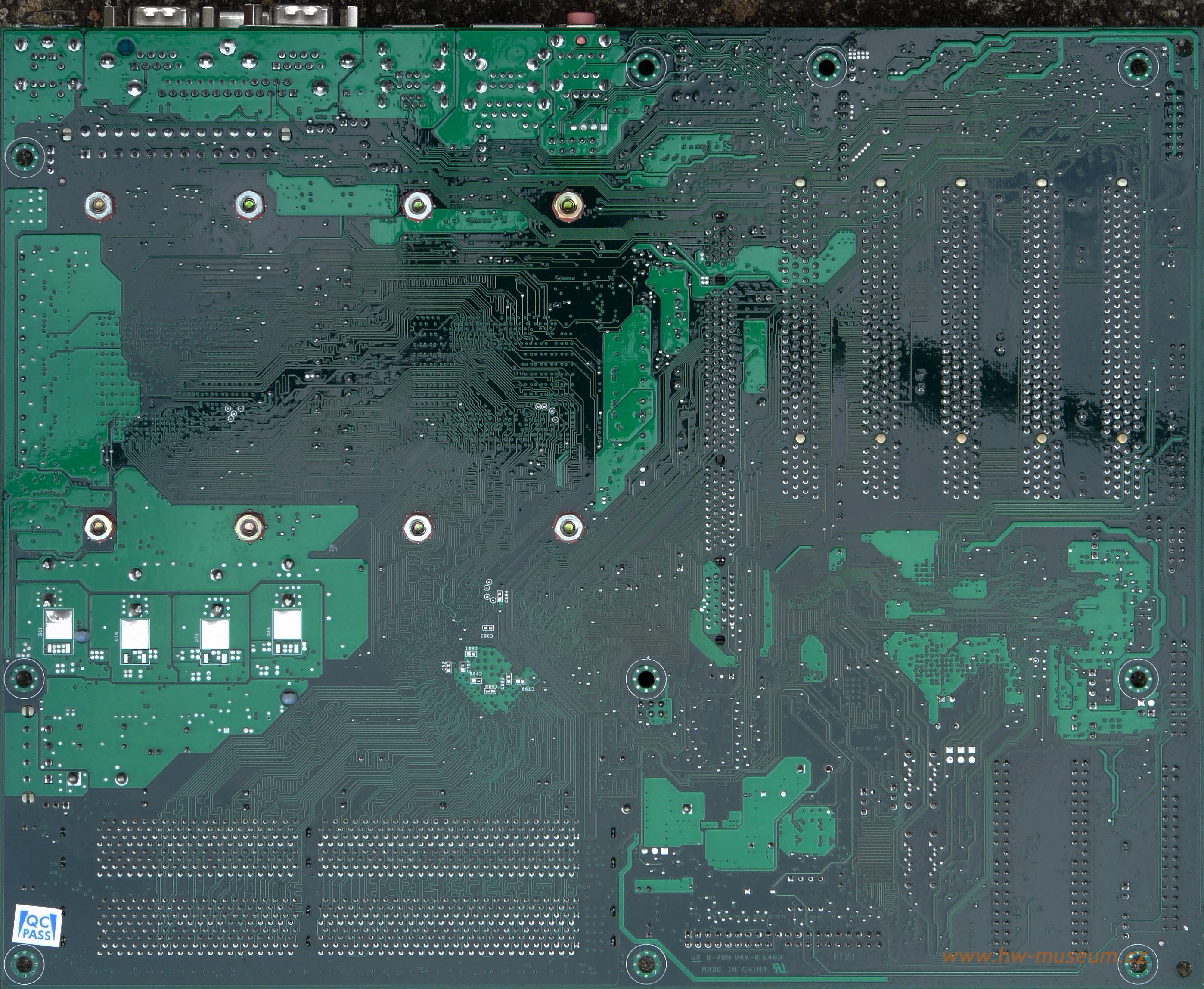

Asus PC-DL Deluxe (back side)

Asus PC-DL Deluxe (back side)
